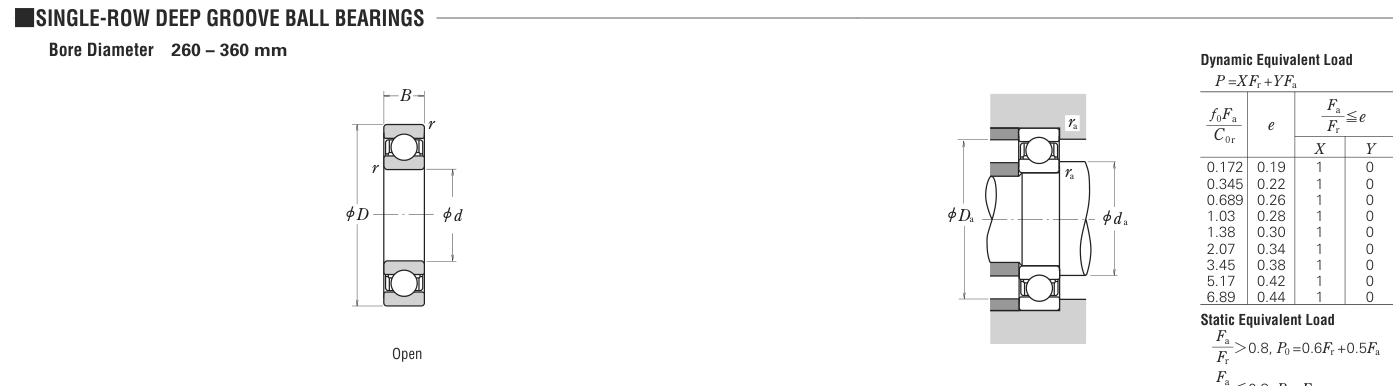

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
260
10.2362
D
Outside diameter
320
12.5984
B
Inner-ring / bearing width
28
1.1024
r
Chamfer (min)
2
0.0787
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
260
Outside dia. D (mm)
320
Width B (mm)
28
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
24954
Basic static load rating Cor (lbs)
33272
Basic dynamic load rating Cr (N)
111000
Basic static load rating C0r (N)
148000
Factor f0
17.4
Weight
Weight (kg)
4.84
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
27,750
64
2,133
6
18,500
216
7,200
8
13,875
512
17,067
10
11,100
1,000
33,333
15
7,400
3,375
112,500
Basic rating life per ISO 281: L10 = (C/P)3 with C = 111,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.186 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
