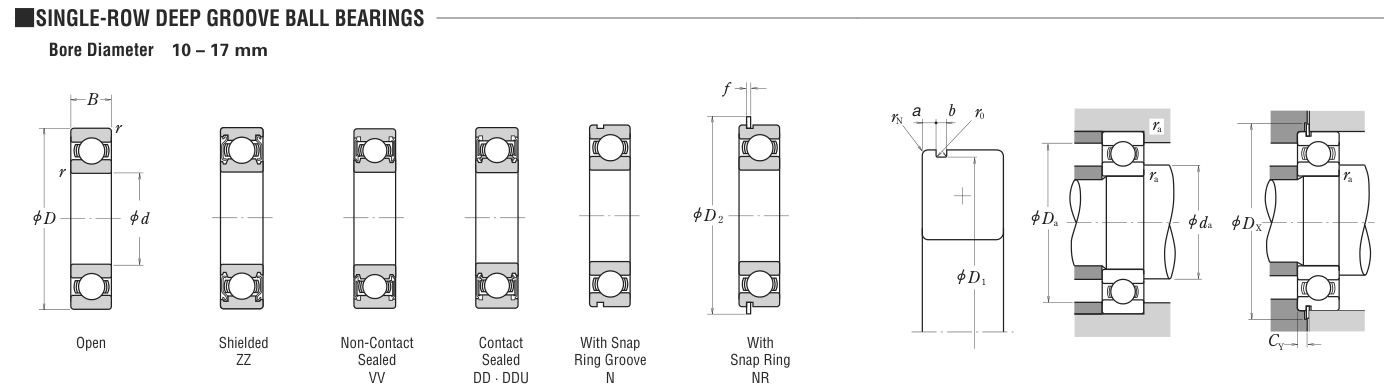

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
12
0.4724
D
Outside diameter
28
1.1024
B
Inner-ring / bearing width
7
0.2756
r
Chamfer (min)
0.3
0.0118
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
12
Outside dia. D (mm)
28
Width B (mm)
7
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
1259
Basic static load rating Cor (lbs)
533
Basic dynamic load rating Cr (N)
5600
Basic static load rating C0r (N)
2370
Factor f0
13.0
Limiting speed - grease (rpm)
28,000
Limiting speed - oil (rpm)
32,000
Weight
Weight (kg)
0.019
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
0.3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 3,000 rpm
4
1,400
64
356
6
933
216
1,200
8
700
512
2,844
10
560
1,000
5,556
15
373
3,375
18,750
Basic rating life per ISO 281: L10 = (C/P)3 with C = 5,600 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.176 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
