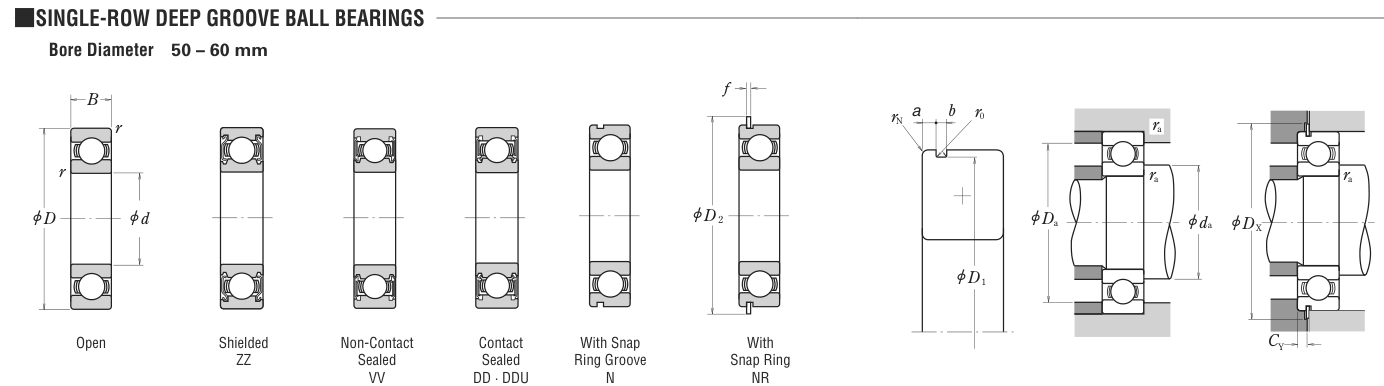

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
55
2.1654
D
Outside diameter
90
3.5433
B
Inner-ring / bearing width
11
0.4331
r
Chamfer (min)
0.6
0.0236
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
55
Outside dia. D (mm)
90
Width B (mm)
11
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
4811
Basic static load rating Cor (lbs)
3664
Basic dynamic load rating Cr (N)
21400
Basic static load rating C0r (N)
16300
Factor f0
16.2
Limiting speed - grease (rpm)
7,500
Limiting speed - oil (rpm)
9,000
Weight
Weight (kg)
0.257
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
0.6
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 2,500 rpm
4
5,350
64
427
6
3,567
216
1,440
8
2,675
512
3,413
10
2,140
1,000
6,667
15
1,427
3,375
22,500
Basic rating life per ISO 281: L10 = (C/P)3 with C = 21,400 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.179 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
