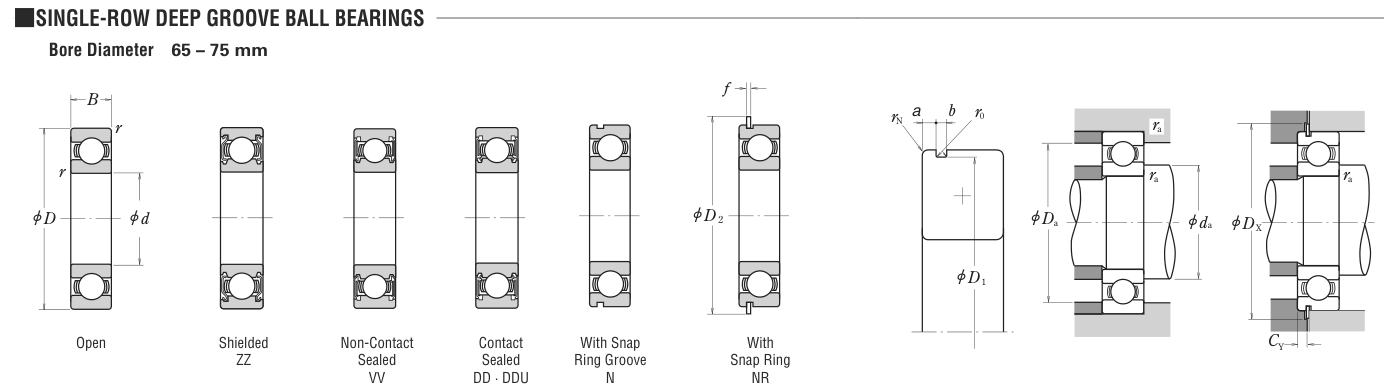

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
65
2.5591
D
Outside diameter
100
3.937
B
Inner-ring / bearing width
11
0.4331
r
Chamfer (min)
0.6
0.0236
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
65
Outside dia. D (mm)
100
Width B (mm)
11
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
5058
Basic static load rating Cor (lbs)
4204
Basic dynamic load rating Cr (N)
22500
Basic static load rating C0r (N)
18700
Factor f0
16.5
Limiting speed - grease (rpm)
6,700
Limiting speed - oil (rpm)
8,000
Weight
Weight (kg)
0.3
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
0.6
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 2,200 rpm
4
5,625
64
485
6
3,750
216
1,636
8
2,812
512
3,879
10
2,250
1,000
7,576
15
1,500
3,375
25,568
Basic rating life per ISO 281: L10 = (C/P)3 with C = 22,500 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.180 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
