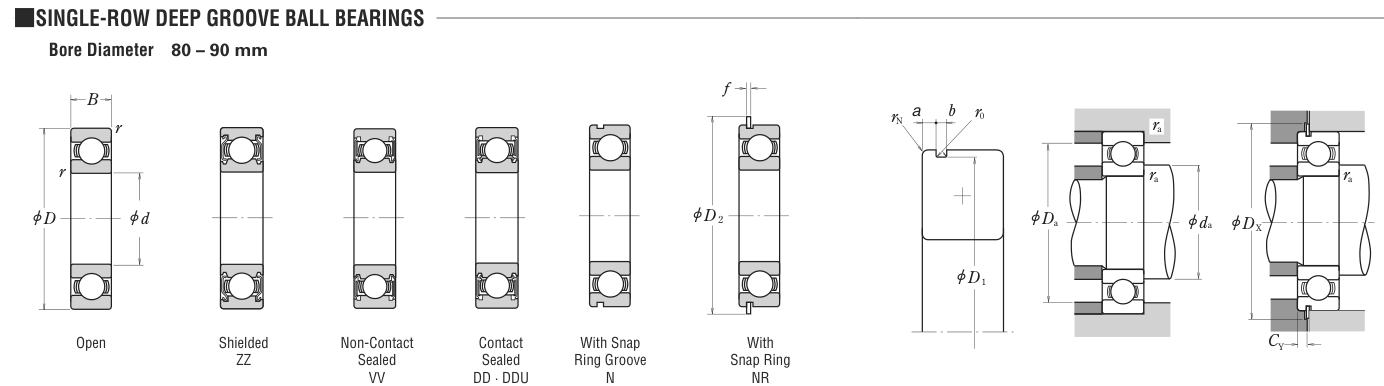

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
90
3.5433
D
Outside diameter
140
5.5118
B
Inner-ring / bearing width
16
0.6299
r
Chamfer (min)
1
0.0394
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
90
Outside dia. D (mm)
140
Width B (mm)
16
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
10229
Basic static load rating Cor (lbs)
8880
Basic dynamic load rating Cr (N)
45500
Basic static load rating C0r (N)
39500
Factor f0
16.3
Limiting speed - grease (rpm)
4,800
Limiting speed - oil (rpm)
5,600
Weight
Weight (kg)
0.873
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,600 rpm
4
11,375
64
667
6
7,583
216
2,250
8
5,688
512
5,333
10
4,550
1,000
10,417
15
3,033
3,375
35,156
Basic rating life per ISO 281: L10 = (C/P)3 with C = 45,500 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.181 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
