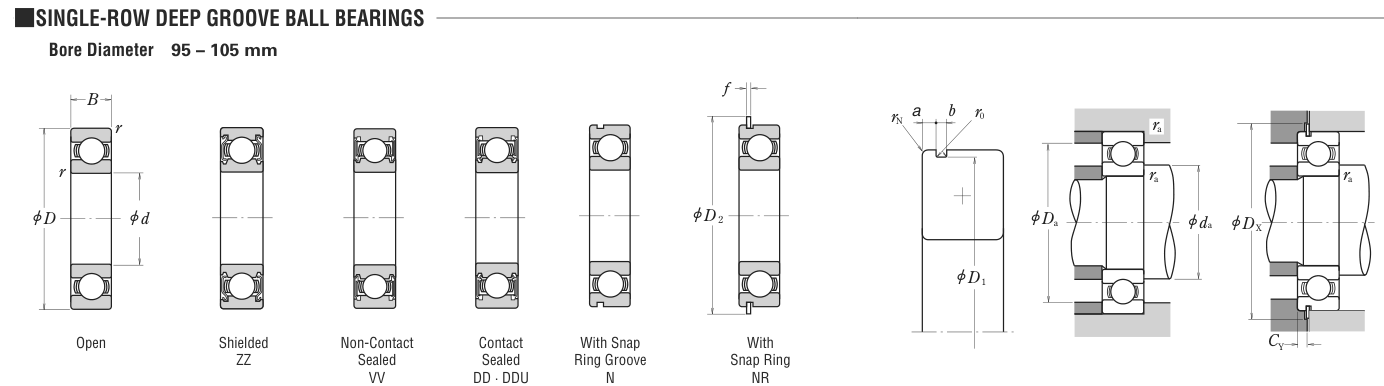

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
95
3.7402
D
Outside diameter
145
5.7087
B
Inner-ring / bearing width
16
0.6299
r
Chamfer (min)
1
0.0394
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
95
Outside dia. D (mm)
145
Width B (mm)
16
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
10566
Basic static load rating Cor (lbs)
9442
Basic dynamic load rating Cr (N)
47000
Basic static load rating C0r (N)
42000
Factor f0
16.4
Limiting speed - grease (rpm)
4,500
Limiting speed - oil (rpm)
5,300
Weight
Weight (kg)
0.904
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,500 rpm
4
11,750
64
711
6
7,833
216
2,400
8
5,875
512
5,689
10
4,700
1,000
11,111
15
3,133
3,375
37,500
Basic rating life per ISO 281: L10 = (C/P)3 with C = 47,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.182 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
