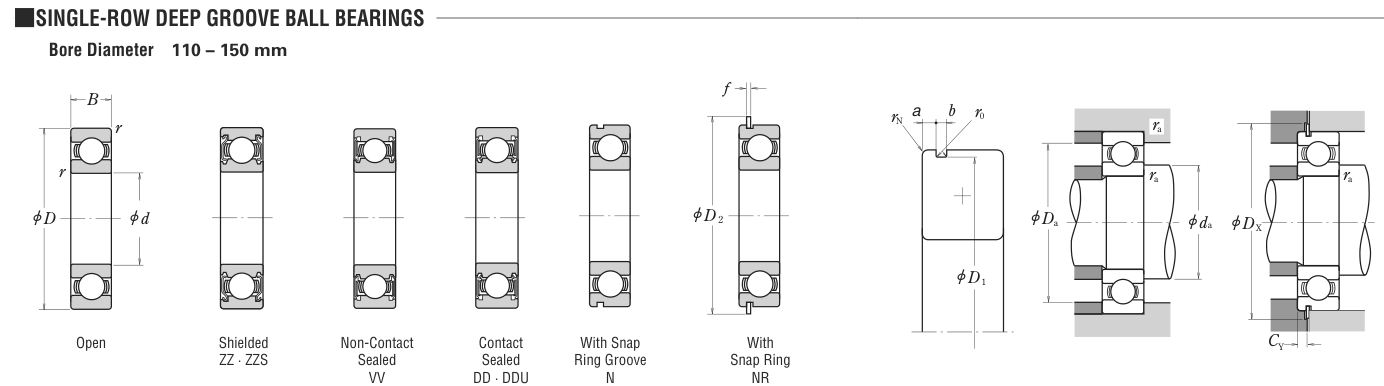

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
110
4.3307
D
Outside diameter
170
6.6929
B
Inner-ring / bearing width
19
0.748
r
Chamfer (min)
1
0.0394
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
110
Outside dia. D (mm)
170
Width B (mm)
19
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
14163
Basic static load rating Cor (lbs)
12702
Basic dynamic load rating Cr (N)
63000
Basic static load rating C0r (N)
56500
Factor f0
16.3
Limiting speed - grease (rpm)
3,800
Limiting speed - oil (rpm)
4,500
Weight
Weight (kg)
1.51
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,200 rpm
4
15,750
64
889
6
10,500
216
3,000
8
7,875
512
7,111
10
6,300
1,000
13,889
15
4,200
3,375
46,875
Basic rating life per ISO 281: L10 = (C/P)3 with C = 63,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.183 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
