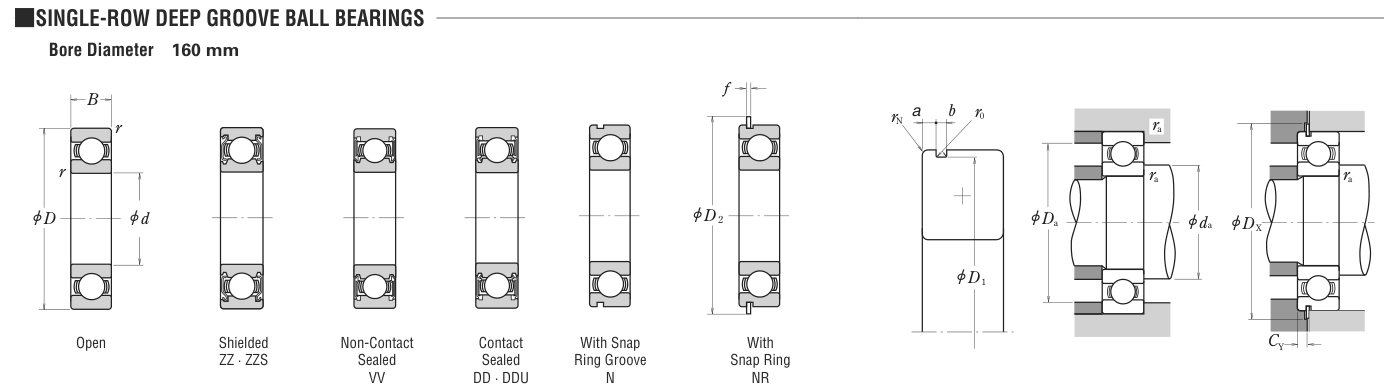

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
160
6.2992
D
Outside diameter
240
9.4488
B
Inner-ring / bearing width
25
0.9843
r
Chamfer (min)
1.5
0.0591
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
160
Outside dia. D (mm)
240
Width B (mm)
25
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
24504
Basic static load rating Cor (lbs)
24279
Basic dynamic load rating Cr (N)
109000
Basic static load rating C0r (N)
108000
Factor f0
16.5
Limiting speed - grease (rpm)
2,400
Limiting speed - oil (rpm)
2,800
Weight
Weight (kg)
4.2
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1.5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 800 rpm
4
27,250
64
1,333
6
18,167
216
4,500
8
13,625
512
10,667
10
10,900
1,000
20,833
15
7,267
3,375
70,312
Basic rating life per ISO 281: L10 = (C/P)3 with C = 109,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.184 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
