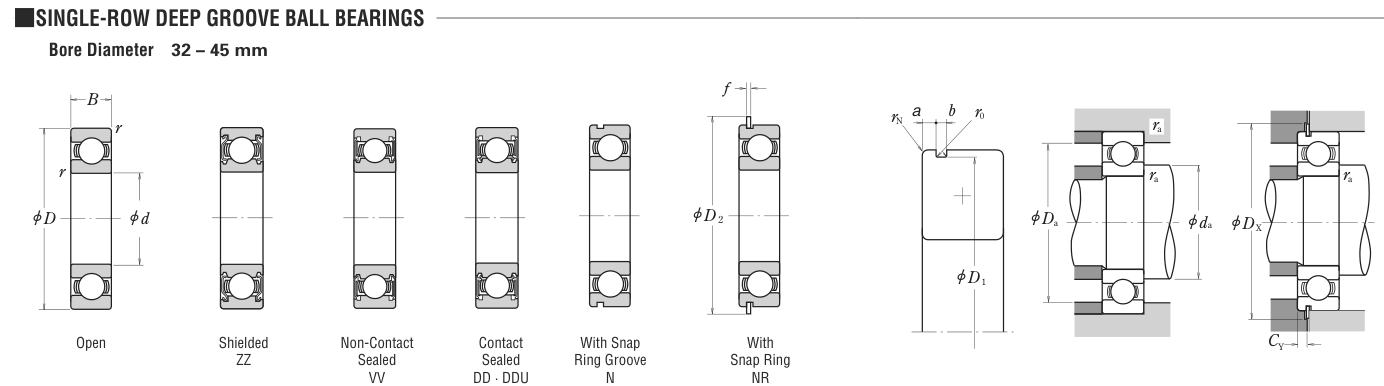

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
32
1.2598
D
Outside diameter
58
2.2835
B
Inner-ring / bearing width
13
0.5118
r
Chamfer (min)
1
0.0394
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
32
Outside dia. D (mm)
58
Width B (mm)
13
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
3732
Basic static load rating Cor (lbs)
2057
Basic dynamic load rating Cr (N)
16600
Basic static load rating C0r (N)
9150
Factor f0
14.5
Limiting speed - grease (rpm)
12,000
Limiting speed - oil (rpm)
14,000
Weight
Weight (kg)
0.122
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 3,000 rpm
4
4,150
64
356
6
2,767
216
1,200
8
2,075
512
2,844
10
1,660
1,000
5,556
15
1,107
3,375
18,750
Basic rating life per ISO 281: L10 = (C/P)3 with C = 16,600 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.178 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
