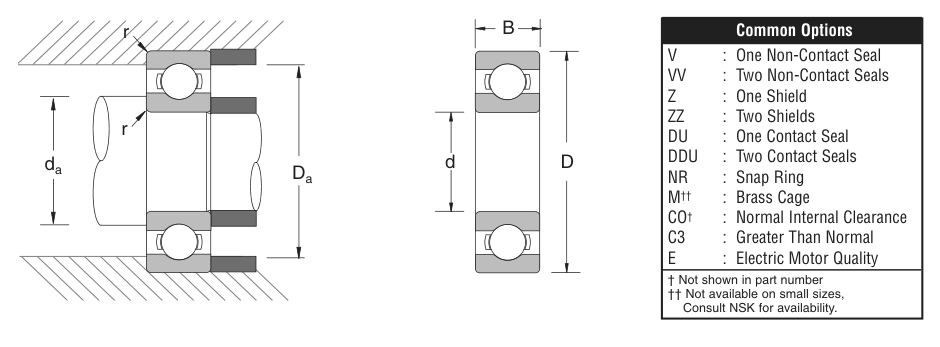

Original catalogue drawing - NSK catalogue, page 15
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
10
0.3937
D
Outside diameter
26
1.0236
B
Inner-ring / bearing width
8
0.315
r
Chamfer (min)
0.305
0.012
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
10
Bore d (in)
0.3937
Outside dia. D (mm)
26
Outside dia. D (in)
1.0236
Width B (mm)
8
Width B (in)
0.3150
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
1030
Basic static load rating Cor (lbs)
443
Limiting speed - grease (rpm)
30,000
Limiting speed - oil (rpm)
36,000
Factor f0
12.4
Weight
Weight (kg)
0.018
Mounting dimensions (fillets / shoulders)
Chamfer r (in)
0.012
Shaft shoulder da min (in)
0.472
Shaft shoulder da max (in)
0.512
Housing shoulder Da max (in)
0.949
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 3,000 rpm
4
1,145
64
356
6
764
216
1,200
8
573
512
2,844
10
458
1,000
5,556
15
305
3,375
18,750
Basic rating life per ISO 281: L10 = (C/P)3 with C = 4,582 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK inch product catalogue
Catalogue page
p.17 (dimensions) / p.18 (ratings)
Dimensions in inches and millimetres, load ratings in lbs.
