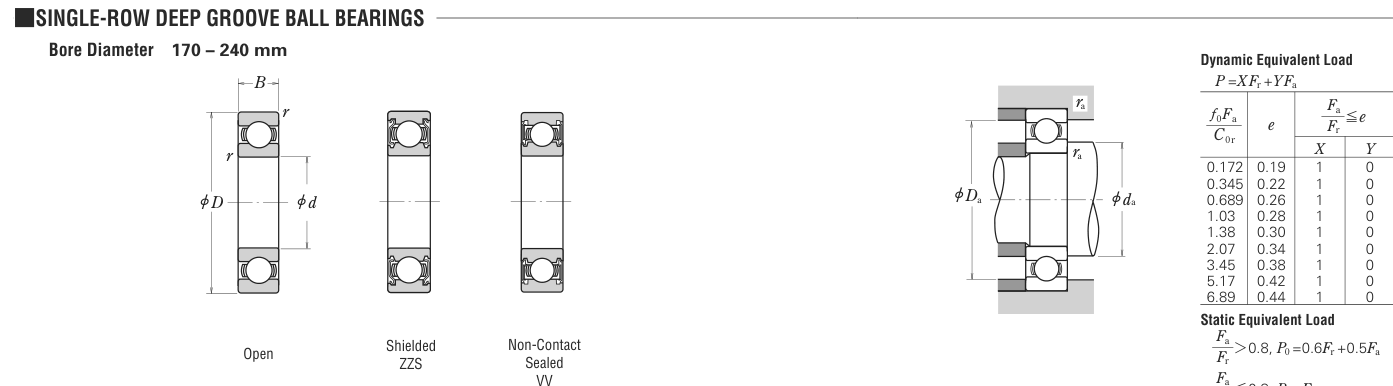

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
220
8.6614
D
Outside diameter
340
13.3858
B
Inner-ring / bearing width
56
2.2047
r
Chamfer (min)
3
0.1181
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
220
Outside dia. D (mm)
340
Width B (mm)
56
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
58226
Basic static load rating Cor (lbs)
60923
Basic dynamic load rating Cr (N)
259000
Basic static load rating C0r (N)
271000
Factor f0
15.6
Limiting speed - grease (rpm)
1,700
Limiting speed - oil (rpm)
2,000
Weight
Weight (kg)
18.6
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
64,750
64
2,133
6
43,167
216
7,200
8
32,375
512
17,067
10
25,900
1,000
33,333
15
17,267
3,375
112,500
Basic rating life per ISO 281: L10 = (C/P)3 with C = 259,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.185 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
