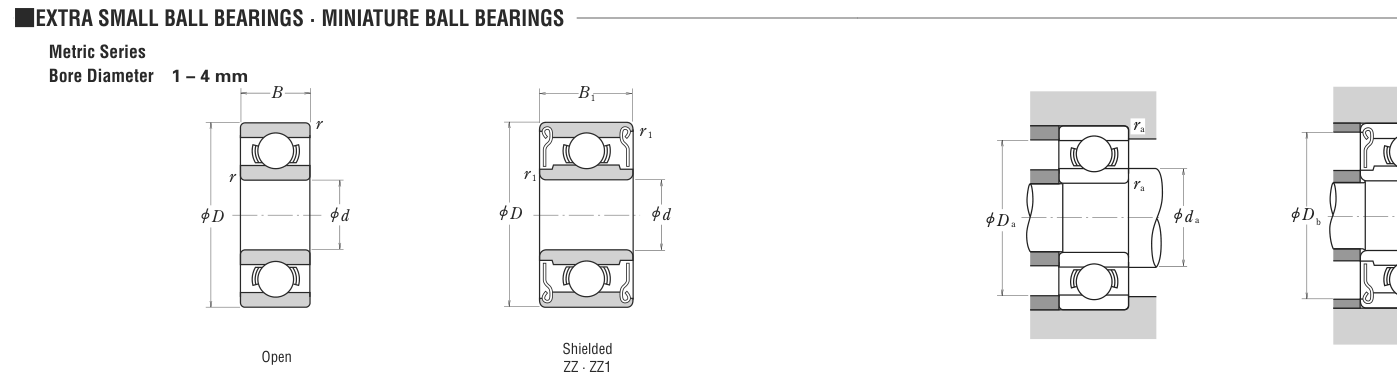

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
2.5
0.0984
D
Outside diameter
10
0.3937
B
Inner-ring / bearing width
3
0.1181
r
Chamfer (min)
0.2
0.0079
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
2.5
Outside dia. D (mm)
10
Width B (mm)
3.0
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
175
Basic static load rating Cor (lbs)
61
Basic dynamic load rating Cr (N)
780
Basic static load rating C0r (N)
270
Limiting speed - grease (rpm)
50,000
Limiting speed - oil (rpm)
60,000
Weight
Weight (kg)
0.00104
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
0.20
Chamfer r1 min (mm)
0.15
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 3,000 rpm
4
195
64
356
6
130
216
1,200
8
98
512
2,844
10
78
1,000
5,556
15
52
3,375
18,750
Basic rating life per ISO 281: L10 = (C/P)3 with C = 780 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.195 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
