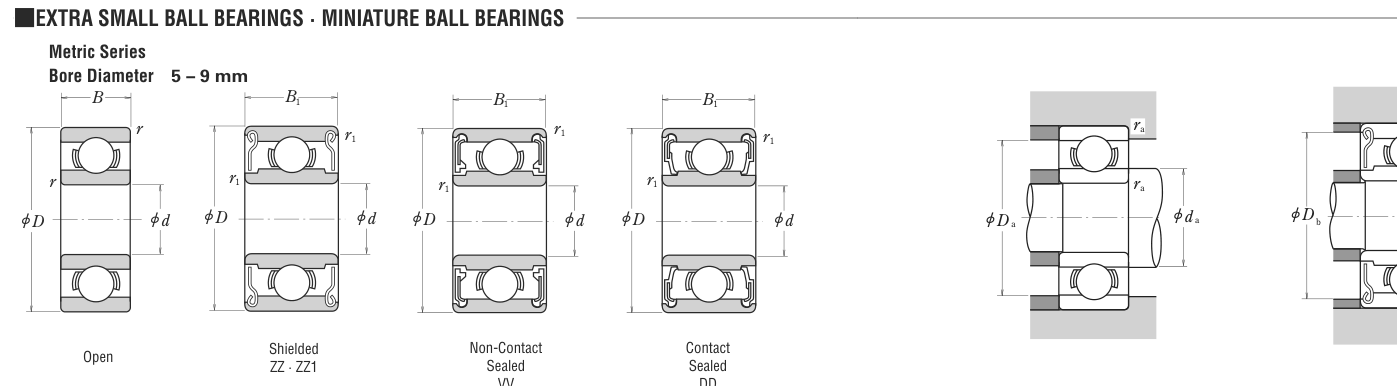

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
6
0.2362
D
Outside diameter
10
0.3937
B
Inner-ring / bearing width
2.5
0.0984
r
Chamfer (min)
0.15
0.0059
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
6
Outside dia. D (mm)
10
Width B (mm)
2.5
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
123
Basic static load rating Cor (lbs)
49
Basic dynamic load rating Cr (N)
545
Basic static load rating C0r (N)
218
Limiting speed - grease (rpm)
45,000
Limiting speed - oil (rpm)
53,000
Weight
Weight (kg)
0.00056
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
0.15
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 3,000 rpm
4
136
64
356
6
91
216
1,200
8
68
512
2,844
10
54
1,000
5,556
15
36
3,375
18,750
Basic rating life per ISO 281: L10 = (C/P)3 with C = 545 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.196 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
