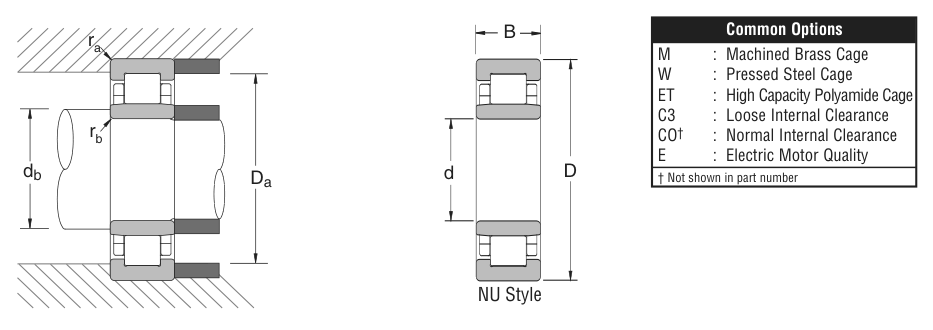

Original catalogue drawing - NSK catalogue, page 61
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
45
1.7717
D
Outside diameter
85
3.3465
B
Inner-ring / bearing width
23
0.9055
Notes
Cylindrical roller entries from the NSK inch catalogue are series numbers covering the N / NU / NJ / NUP / NH prefixes of the same size. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
45
Bore d (in)
1.7717
Outside dia. D (mm)
85
Outside dia. D (in)
3.3465
Width B (mm)
23
Width B (in)
0.9055
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
13800
Basic static load rating Cor (lbs)
15200
Limiting speed - grease (rpm)
7,100
Limiting speed - oil (rpm)
8,500
Weight
Weight (kg)
0.535
Mounting dimensions (fillets / shoulders)
Fillet ra max (in)
0.039
Fillet rb max (in)
0.039
Shaft shoulder da min (in)
2.028
Housing shoulder Da max (in)
3.091
Shaft shoulder db min (in)
2.028
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 2,300 rpm
4
15,346
102
736
6
10,231
392
2,844
8
7,673
1,024
7,420
10
6,139
2,154
15,612
15
4,092
8,323
60,315
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 61,385 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK inch product catalogue
Catalogue page
p.63 (dimensions) / p.64 (ratings)
Dimensions in inches and millimetres, load ratings in lbs.
