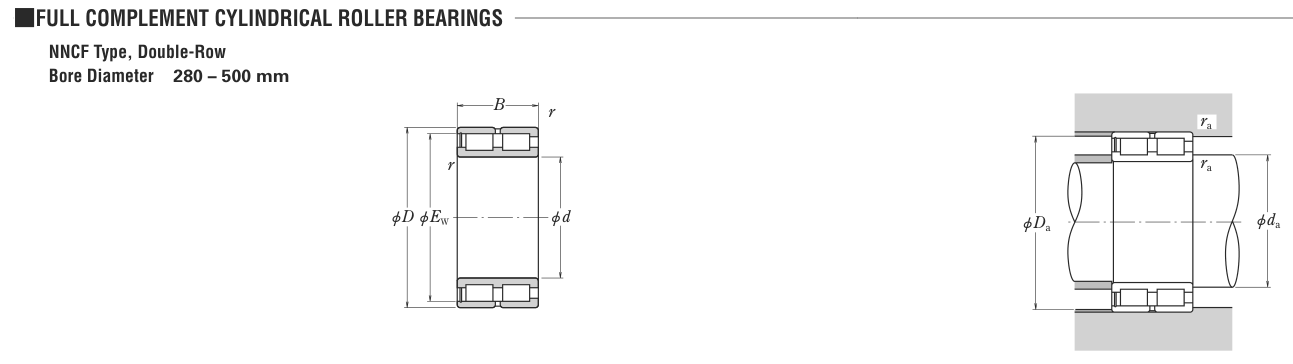

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
280
11.0236
D
Outside diameter
380
14.9606
B
Inner-ring / bearing width
80
3.1496
r
Chamfer (min)
2.1
0.0827
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
280
Outside dia. D (mm)
380
Width B (mm)
80
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
222561
Basic static load rating Cor (lbs)
485587
Basic dynamic load rating Cr (N)
990000
Basic static load rating C0r (N)
2160000
Weight
Weight (kg)
23.0
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
247,500
102
3,386
6
165,000
392
13,083
8
123,750
1,024
34,133
10
99,000
2,154
71,814
15
66,000
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 990,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.252 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
