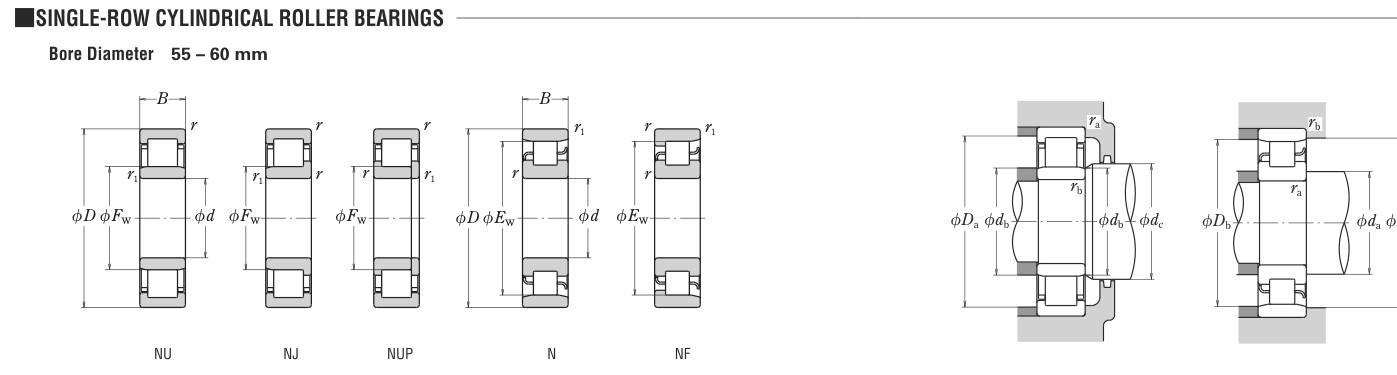

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
55
2.1654
D
Outside diameter
120
4.7244
B
Inner-ring / bearing width
43
1.6929
r
Chamfer (min)
2
0.0787
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
55
Outside dia. D (mm)
120
Width B (mm)
43
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
55528
Basic static load rating Cor (lbs)
52380
Basic dynamic load rating Cr (N)
247000
Basic static load rating C0r (N)
233000
Weight
Weight (kg)
2.18
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2
Chamfer r1 min (mm)
2
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
61,750
102
3,386
6
41,167
392
13,083
8
30,875
1,024
34,133
10
24,700
2,154
71,814
15
16,467
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 247,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.235 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
