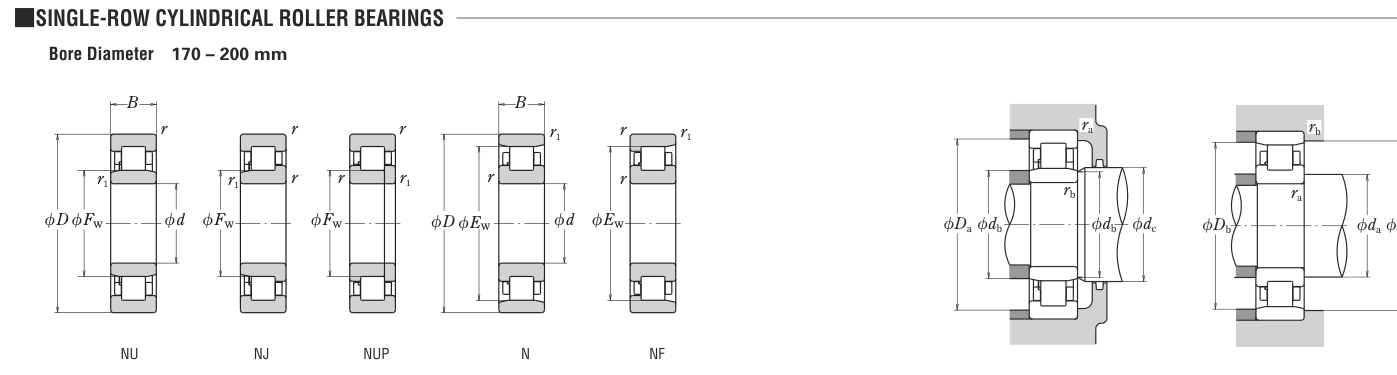

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
180
7.0866
D
Outside diameter
380
14.9606
B
Inner-ring / bearing width
126
4.9606
r
Chamfer (min)
4
0.1575
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
180
Outside dia. D (mm)
380
Width B (mm)
126
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
431633
Basic static load rating Cor (lbs)
499076
Basic dynamic load rating Cr (N)
1920000
Basic static load rating C0r (N)
2220000
Weight
Weight (kg)
74.6
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
4
Chamfer r1 min (mm)
4
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
480,000
102
3,386
6
320,000
392
13,083
8
240,000
1,024
34,133
10
192,000
2,154
71,814
15
128,000
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 1,920,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.242 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
