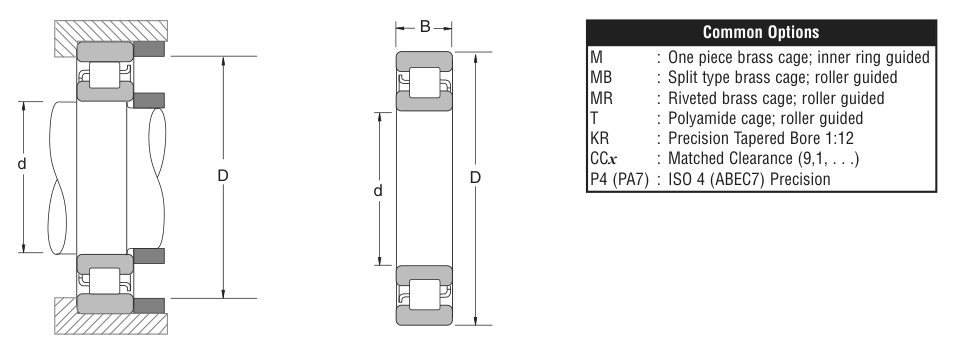

Original catalogue drawing - NSK catalogue, page 219
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
100
3.937
D
Outside diameter
150
5.9055
B
Inner-ring / bearing width
22.5
0.8858
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
100
Bore d (in)
3.9370
Outside dia. D (mm)
150
Outside dia. D (in)
5.9055
Width B (mm)
22.5
Width B (in)
0.8858
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
11578
Basic static load rating Cor (lbs)
25628
Limiting speed - grease (rpm)
200
Limiting speed - oil (rpm)
800
Preload (lbs)
125.89
Weight
Weight (kg)
1.397
Mounting dimensions (fillets / shoulders)
Fillet rb (in)
0.03937
Shaft shoulder da (in)
4.2913
Housing shoulder Db max (in)
5.6693
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 100 rpm
4
12,875
64
10,667
6
8,584
216
36,000
8
6,438
512
85,333
10
5,150
1,000
166,667
15
3,433
3,375
562,500
Basic rating life per ISO 281: L10 = (C/P)3 with C = 51,502 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK inch product catalogue
Catalogue page
p.219 (dimensions) / p.220 (ratings)
Dimensions in inches and millimetres, load ratings in lbs.
