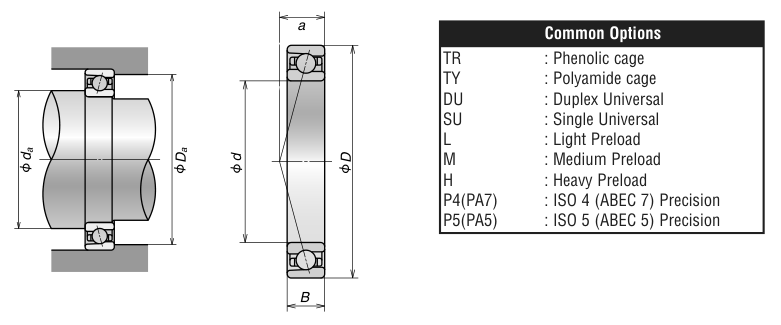

Original catalogue drawing - NSK catalogue, page 211
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
105
4.1339
D
Outside diameter
160
6.2992
B
Inner-ring / bearing width
24.75
0.9744
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
105
Bore d (in)
4.1339
Outside dia. D (mm)
160
Outside dia. D (in)
6.2992
Width B (mm)
24.75
Width B (in)
0.9744
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
11128
Basic static load rating Cor (lbs)
25853
Limiting speed - grease (rpm)
700
Limiting speed - oil (rpm)
200
Preload (lbs)
85.43
Weight
Weight (kg)
1.737
Mounting dimensions (fillets / shoulders)
Fillet rb (in)
0.03937
Shaft shoulder da (in)
4.5276
Housing shoulder Db max (in)
6.06299
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 200 rpm
4
12,375
64
5,333
6
8,250
216
18,000
8
6,187
512
42,667
10
4,950
1,000
83,333
15
3,300
3,375
281,250
Basic rating life per ISO 281: L10 = (C/P)3 with C = 49,500 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK inch product catalogue
Catalogue page
p.217 (dimensions) / p.218 (ratings)
Dimensions in inches and millimetres, load ratings in lbs.
