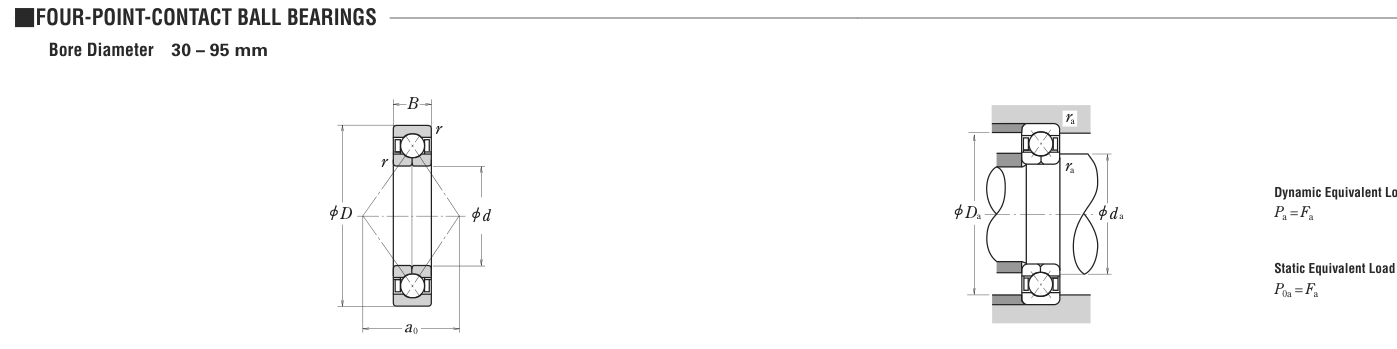

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
55
2.1654
D
Outside diameter
130
5.1181
B
Inner-ring / bearing width
31
1.2205
r
Chamfer (min)
2.1
0.0827
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
55
Outside dia. D (mm)
130
Width B (mm)
31
Load ratings & speeds
Basic dynamic axial rating Ca (lbs)
33272
Basic static axial rating Coa (lbs)
48784
Basic dynamic axial rating Ca (N)
148000
Basic static axial rating C0a (N)
217000
Limiting speed - grease (rpm)
4,300
Weight
Weight (kg)
2.15
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,400 rpm
4
37,000
64
762
6
24,667
216
2,571
8
18,500
512
6,095
10
14,800
1,000
11,905
15
9,867
3,375
40,179
Basic rating life per ISO 281: L10 = (C/P)3 with C = 148,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.221 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
