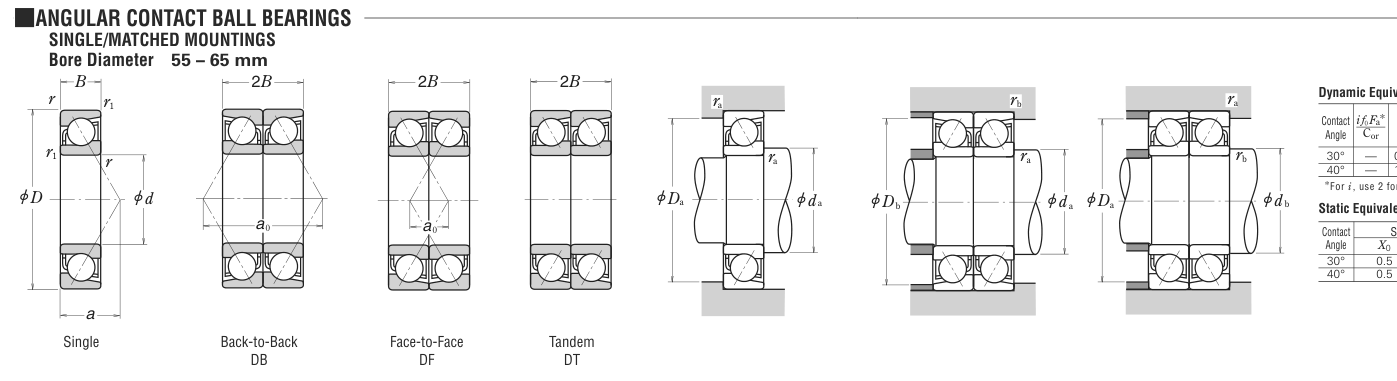

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
65
2.5591
D
Outside diameter
100
3.937
B
Inner-ring / bearing width
18
0.7087
r
Chamfer (min)
1.1
0.0433
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
65
Outside dia. D (mm)
100
Width B (mm)
18
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
8655
Basic static load rating Cor (lbs)
7419
Basic dynamic load rating Cr (N)
38500
Basic static load rating C0r (N)
33000
Limiting speed - grease (rpm)
5,300
Limiting speed - oil (rpm)
7,500
Effective load centre a (mm)
32.8
Weight
Weight (kg)
0.455
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1.1
Chamfer r1 min (mm)
0.6
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,700 rpm
4
9,625
64
627
6
6,417
216
2,118
8
4,812
512
5,020
10
3,850
1,000
9,804
15
2,567
3,375
33,088
Basic rating life per ISO 281: L10 = (C/P)3 with C = 38,500 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.213 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
