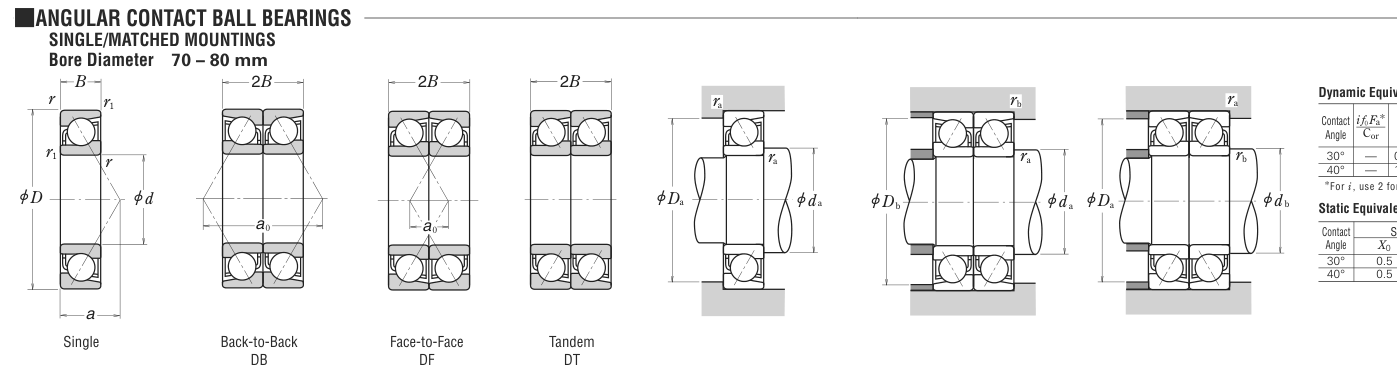

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
70
2.7559
D
Outside diameter
110
4.3307
B
Inner-ring / bearing width
20
0.7874
r
Chamfer (min)
1.1
0.0433
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
70
Outside dia. D (mm)
110
Width B (mm)
20
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
10903
Basic static load rating Cor (lbs)
9330
Basic dynamic load rating Cr (N)
48500
Basic static load rating C0r (N)
41500
Limiting speed - grease (rpm)
5,000
Limiting speed - oil (rpm)
6,700
Effective load centre a (mm)
36.0
Weight
Weight (kg)
0.625
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1.1
Chamfer r1 min (mm)
0.6
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,600 rpm
4
12,125
64
667
6
8,083
216
2,250
8
6,062
512
5,333
10
4,850
1,000
10,417
15
3,233
3,375
35,156
Basic rating life per ISO 281: L10 = (C/P)3 with C = 48,500 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.214 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
