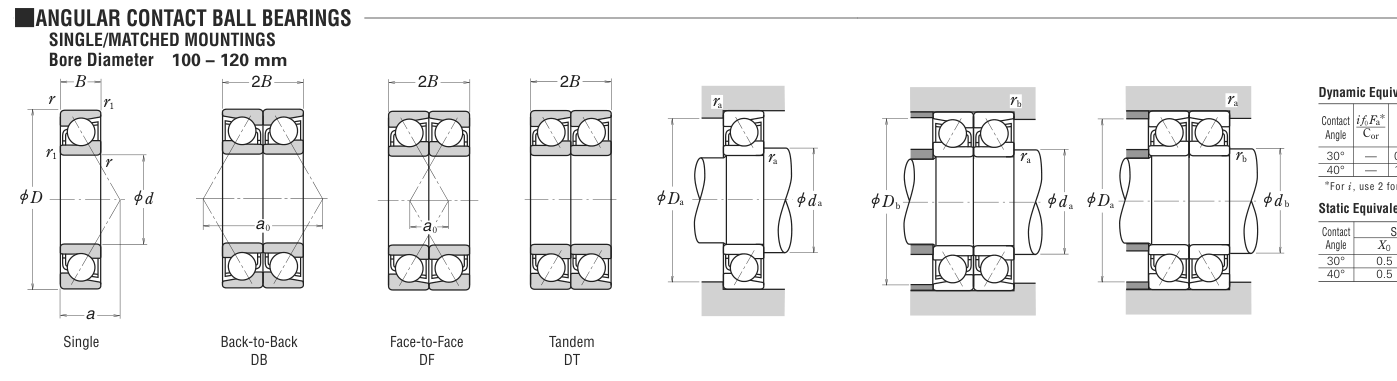

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
110
4.3307
D
Outside diameter
170
6.6929
B
Inner-ring / bearing width
28
1.1024
r
Chamfer (min)
2
0.0787
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
110
Outside dia. D (mm)
170
Width B (mm)
28
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
23830
Basic static load rating Cor (lbs)
21469
Basic dynamic load rating Cr (N)
106000
Basic static load rating C0r (N)
95500
Limiting speed - grease (rpm)
4,000
Limiting speed - oil (rpm)
5,300
Effective load centre a (mm)
54.4
Weight
Weight (kg)
2.28
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2
Chamfer r1 min (mm)
1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,300 rpm
4
26,500
64
821
6
17,667
216
2,769
8
13,250
512
6,564
10
10,600
1,000
12,821
15
7,067
3,375
43,269
Basic rating life per ISO 281: L10 = (C/P)3 with C = 106,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.216 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
