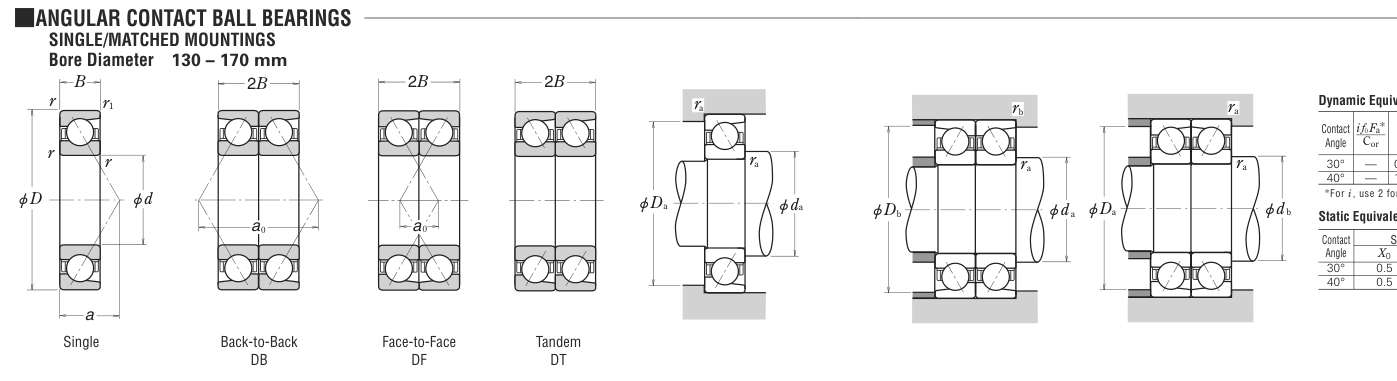

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
130
5.1181
D
Outside diameter
200
7.874
B
Inner-ring / bearing width
33
1.2992
r
Chamfer (min)
2
0.0787
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
130
Outside dia. D (mm)
200
Width B (mm)
33
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
29000
Basic static load rating Cor (lbs)
28101
Basic dynamic load rating Cr (N)
129000
Basic static load rating C0r (N)
125000
Limiting speed - grease (rpm)
3,400
Limiting speed - oil (rpm)
4,500
Effective load centre a (mm)
64.1
Weight
Weight (kg)
3.68
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2
Chamfer r1 min (mm)
1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,100 rpm
4
32,250
64
970
6
21,500
216
3,273
8
16,125
512
7,758
10
12,900
1,000
15,152
15
8,600
3,375
51,136
Basic rating life per ISO 281: L10 = (C/P)3 with C = 129,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.217 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
