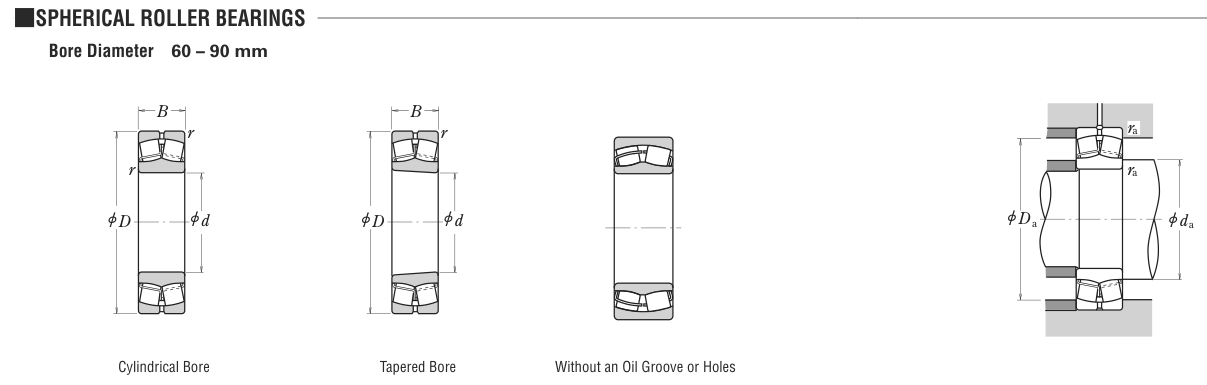

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
70
2.7559
D
Outside diameter
150
5.9055
B
Inner-ring / bearing width
35
1.378
r
Chamfer (min)
2.1
0.0827
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
70
Outside dia. D (mm)
150
Width B (mm)
35
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
69691
Basic static load rating Cor (lbs)
73063
Basic dynamic load rating Cr (N)
310000
Basic static load rating C0r (N)
325000
Limiting speed - grease (rpm)
3,200
Limiting speed - oil (rpm)
5,600
Weight
Weight (kg)
3.0
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,000 rpm
4
77,500
102
1,693
6
51,667
392
6,542
8
38,750
1,024
17,067
10
31,000
2,154
35,907
15
20,667
8,323
138,724
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 310,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.300 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
