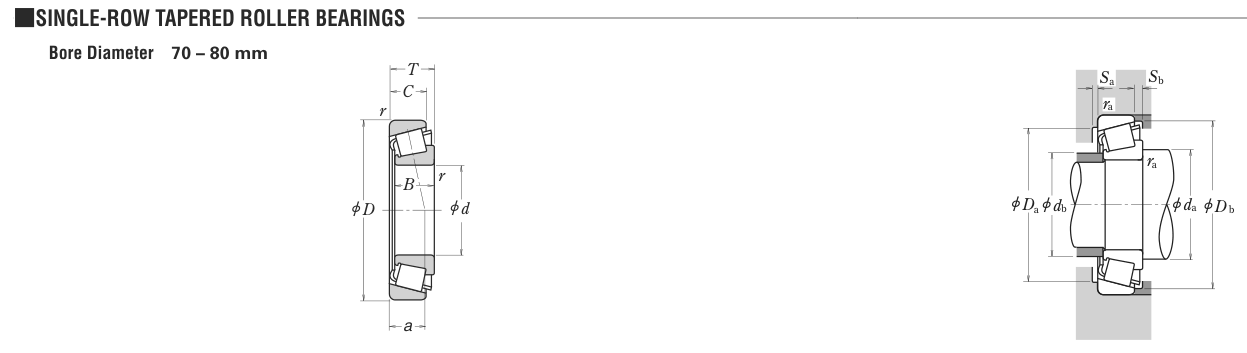

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
75
2.9528
D
Outside diameter
160
6.2992
B
Inner-ring / bearing width
37
1.4567
T
Overall assembly width
40
1.5748
C
Cup / outer-ring width
26
1.0236
r
Chamfer (min)
2.5
0.0984
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
75
Outside dia. D (mm)
160
Width B (mm)
37
Overall width T (mm)
40
Cup width C (mm)
26
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
58226
Basic static load rating Cor (lbs)
56427
Basic dynamic load rating Cr (N)
259000
Basic static load rating C0r (N)
251000
Limiting speed - grease (rpm)
2,200
Effective load centre a (mm)
3
Weight
Weight (kg)
3.47
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 700 rpm
4
64,750
102
2,419
6
43,167
392
9,345
8
32,375
1,024
24,381
10
25,900
2,154
51,296
15
17,267
8,323
198,178
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 259,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.265 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
