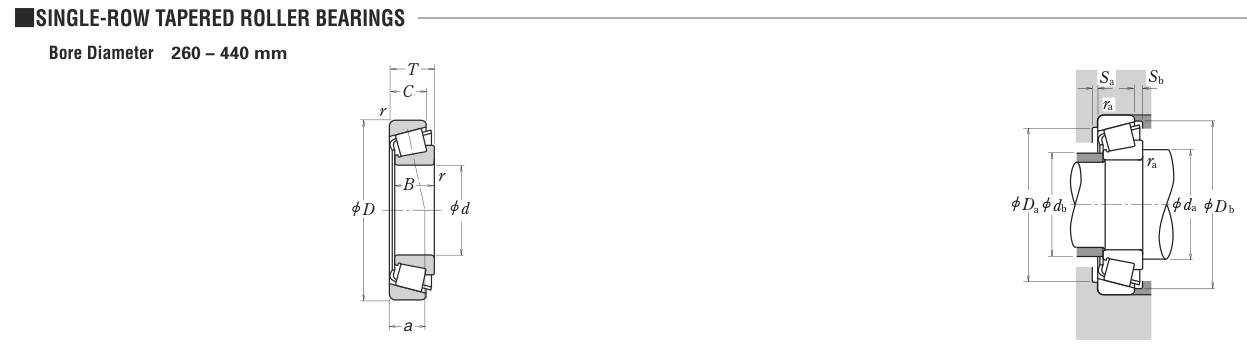

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
340
13.3858
D
Outside diameter
520
20.4724
B
Inner-ring / bearing width
106
4.1732
T
Overall assembly width
112
4.4094
C
Cup / outer-ring width
92
3.622
r
Chamfer (min)
5
0.1969
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
340
Outside dia. D (mm)
520
Width B (mm)
106
Overall width T (mm)
112
Cup width C (mm)
92
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
456362
Basic static load rating Cor (lbs)
764350
Basic dynamic load rating Cr (N)
2030000
Basic static load rating C0r (N)
3400000
Limiting speed - grease (rpm)
560
Effective load centre a (mm)
6
Weight
Weight (kg)
83.7
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 100 rpm
4
507,500
102
16,932
6
338,333
392
65,416
8
253,750
1,024
170,667
10
203,000
2,154
359,072
15
135,333
8,323
1,387,244
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 2,030,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.270 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
