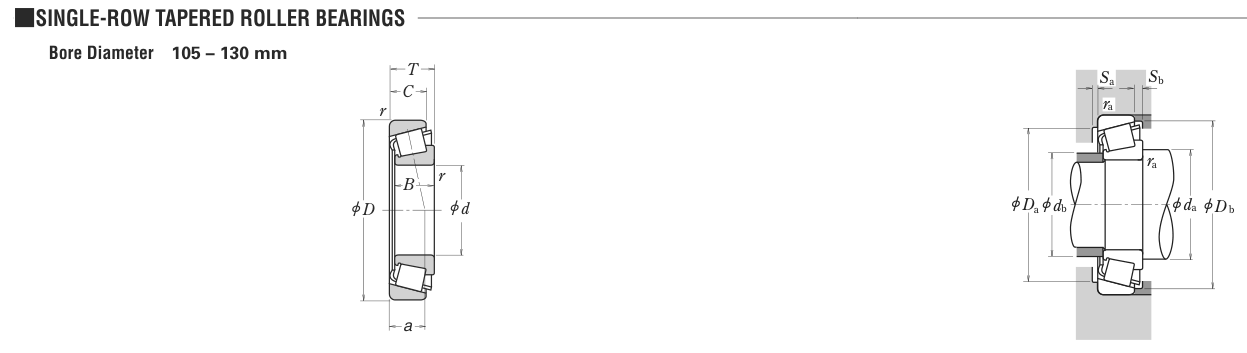

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
130
5.1181
D
Outside diameter
180
7.0866
B
Inner-ring / bearing width
30
1.1811
T
Overall assembly width
32
1.2598
C
Cup / outer-ring width
26
1.0236
r
Chamfer (min)
1.5
0.0591
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
130
Outside dia. D (mm)
180
Width B (mm)
30
Overall width T (mm)
32
Cup width C (mm)
26
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
46086
Basic static load rating Cor (lbs)
63171
Basic dynamic load rating Cr (N)
205000
Basic static load rating C0r (N)
281000
Limiting speed - grease (rpm)
1,800
Effective load centre a (mm)
2
Weight
Weight (kg)
2.25
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1.5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 600 rpm
4
51,250
102
2,822
6
34,167
392
10,903
8
25,625
1,024
28,444
10
20,500
2,154
59,845
15
13,667
8,323
231,207
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 205,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.267 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
