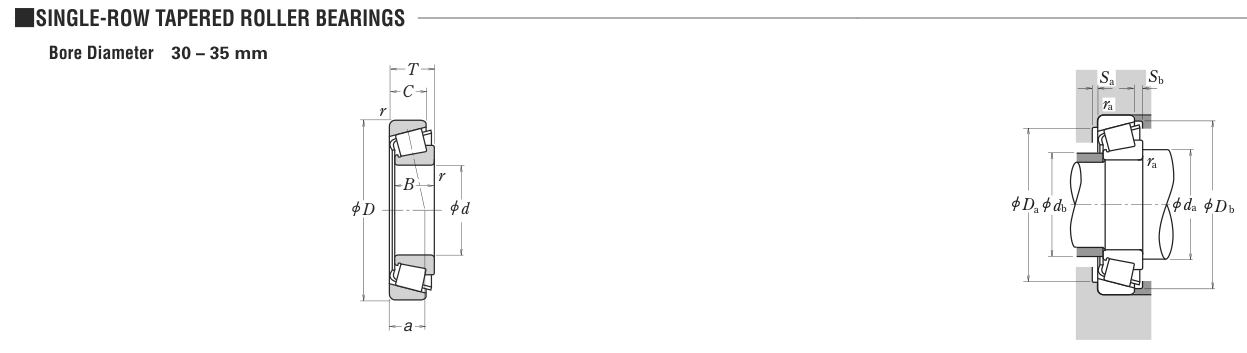

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
35
1.378
D
Outside diameter
62
2.4409
B
Inner-ring / bearing width
18
0.7087
T
Overall assembly width
18
0.7087
C
Cup / outer-ring width
14
0.5512
r
Chamfer (min)
1
0.0394
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
35
Outside dia. D (mm)
62
Width B (mm)
18
Overall width T (mm)
18
Cup width C (mm)
14
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
11915
Basic static load rating Cor (lbs)
12477
Basic dynamic load rating Cr (N)
53000
Basic static load rating C0r (N)
55500
Limiting speed - grease (rpm)
5,600
Effective load centre a (mm)
1
Weight
Weight (kg)
0.229
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,800 rpm
4
13,250
102
941
6
8,833
392
3,634
8
6,625
1,024
9,481
10
5,300
2,154
19,948
15
3,533
8,323
77,069
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 53,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.262 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
