HR322/32C is a NSK tapered roller bearing, bore 32 mm, O.D. 65 mm, width 21 mm, dynamic rating 11,100 lbs. Dimensions, drawing, interchanges and price.

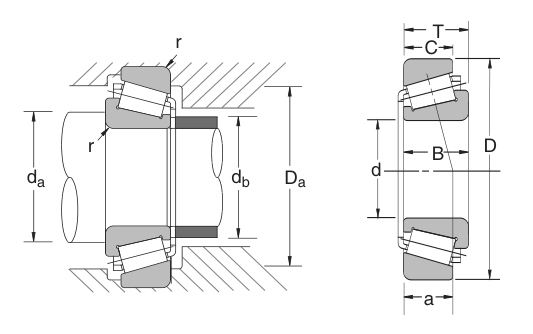

Original catalogue drawing - NSK catalogue, page 129
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
32
1.2598
D
Outside diameter
65
2.5591
B
Inner-ring / bearing width
21
0.8268
T
Overall assembly width
22.25
0.876
C
Cup / outer-ring width
17
0.6693
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
32
Bore d (in)
1.2598
Outside dia. D (mm)
65
Outside dia. D (in)
2.5591
Width B (mm)
21
Width B (in)
0.8268
Overall width T (mm)
22.25
Overall width T (in)
0.8760
Cup width C (mm)
17
Cup width C (in)
0.6693
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
11100
Basic static load rating Cor (lbs)
13500
Limiting speed - grease (rpm)
5,600
Limiting speed - oil (rpm)
7,500
Weight
Weight (kg)
0.331
Mounting dimensions (fillets / shoulders)
Chamfer r (in)
0.039
Shaft shoulder da min (in)
1.615
Housing shoulder Da max (in)
2.325
Shaft shoulder db max (in)
1.537
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,800 rpm
4
12,344
102
941
6
8,229
392
3,634
8
6,172
1,024
9,481
10
4,938
2,154
19,948
15
3,292
8,323
77,069
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 49,375 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK inch product catalogue
Catalogue page
p.131 (dimensions) / p.132 (ratings)
Dimensions in inches and millimetres, load ratings in lbs.
