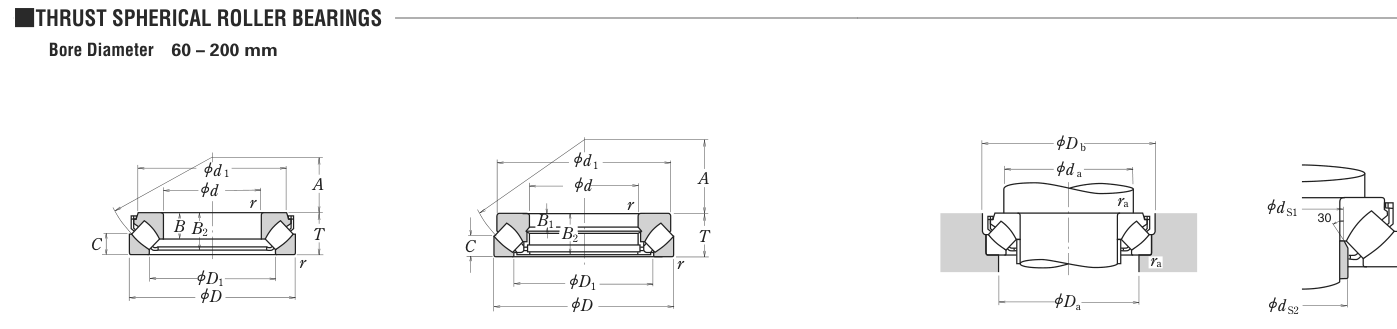

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
100
3.937
D
Outside diameter
170
6.6929
T
Overall assembly width
42
1.6535
r
Chamfer (min)
1.5
0.0591
Notes
Thrust bearing ratings are axial values Ca / Coa; T is the overall height. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
100
Outside dia. D (mm)
170
Overall width T (mm)
42
Load ratings & speeds
Basic dynamic axial rating Ca (lbs)
92172
Basic static axial rating Coa (lbs)
287755
Basic dynamic axial rating Ca (N)
410000
Basic static axial rating C0a (N)
1280000
Weight
Weight (kg)
3.6
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1.5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
102,500
102
3,386
6
68,333
392
13,083
8
51,250
1,024
34,133
10
41,000
2,154
71,814
15
27,333
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 410,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.333 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
