51134NSKThrust
51134 is a NSK thrust bearing, bore 170 mm, O.D. 215 mm, height 34 mm, dynamic rating 135 kN. Dimensions, drawing, interchanges and price.

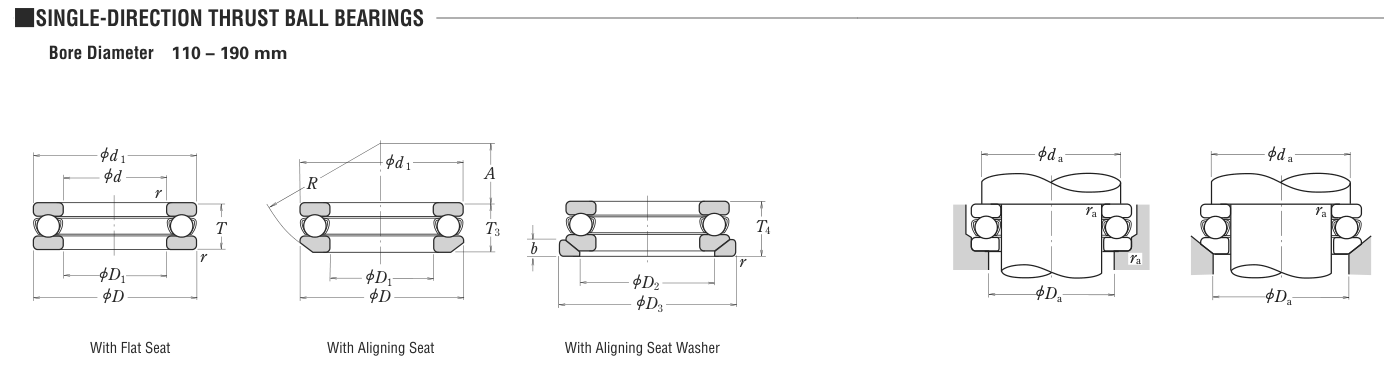

Original catalogue drawing - NSK E1103, page 317
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
| Symbol | Dimension | mm | inch |
|---|---|---|---|
| d | Bore diameter | 170 | 6.6929 |
| D | Outside diameter | 215 | 8.4646 |
| T | Overall assembly width | 34 | 1.3386 |
| r | Chamfer (min) | 1.1 | 0.0433 |
Notes
Thrust bearing ratings are axial values Ca / Coa; T is the overall height. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
| Bore d (mm) | 170 |
|---|---|
| Outside dia. D (mm) | 215 |
| Overall width T (mm) | 34 |
Load ratings & speeds
| Basic dynamic axial rating Ca (lbs) | 30349 |
|---|---|
| Basic static axial rating Coa (lbs) | 114653 |
| Basic dynamic axial rating Ca (N) | 135000 |
| Basic static axial rating C0a (N) | 510000 |
| Limiting speed - grease (rpm) | 1,100 |
| Limiting speed - oil (rpm) | 1,700 |
Mounting dimensions (fillets / shoulders)
| Housing fillet r max (mm) | 1.1 |
|---|
Bearing life (ISO 281 basic rating life)
| C / P | Equivalent load P (N) | L10 (106 rev) | L10h at 300 rpm |
|---|---|---|---|
| 4 | 33,750 | 102 | 5,644 |
| 6 | 22,500 | 392 | 21,805 |
| 8 | 16,875 | 1,024 | 56,889 |
| 10 | 13,500 | 2,154 | 119,691 |
| 15 | 9,000 | 8,323 | 462,415 |
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 135,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
| Brand | NSK |
|---|---|
| Source catalogue | NSK CAT. No. E1103 (metric) |
| Catalogue page | p.317 (dimensions) |
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
Nearby bore sizes
| Designation | Brand | Type | d | D | B/T | Dyn. rating | kg |
|---|---|---|---|---|---|---|---|
| 29334 | NSK | Thrust | 170 | 280 | 67 | 1050 kN | 14.8 |
| 29334E | NSK | Thrust | 170 | 280 | 67 | 235,000 lbs | 14.742 |
| 29434 | NSK | Thrust | 170 | 340 | 103 | 375,000 lbs | 43.545 |
| 51334 | NSK | Thrust | 170 | 280 | 87 | 465 kN | 23.2 |
| 51434 | NSK | Thrust | 170 | 340 | 135 | 715 kN | 61.3 |
| 52234 | NSK | Thrust | 170 | 240 | None | 280 kN | 15.2 |
| 52334 | NSK | Thrust | 170 | 280 | None | 465 kN | - |
| 52434 | NSK | Thrust | 170 | 340 | None | 715 kN | - |
