51140NSKThrust
51140 is a NSK thrust bearing, bore 200 mm, O.D. 250 mm, height 37 mm, dynamic rating 173 kN. Dimensions, drawing, interchanges and price.

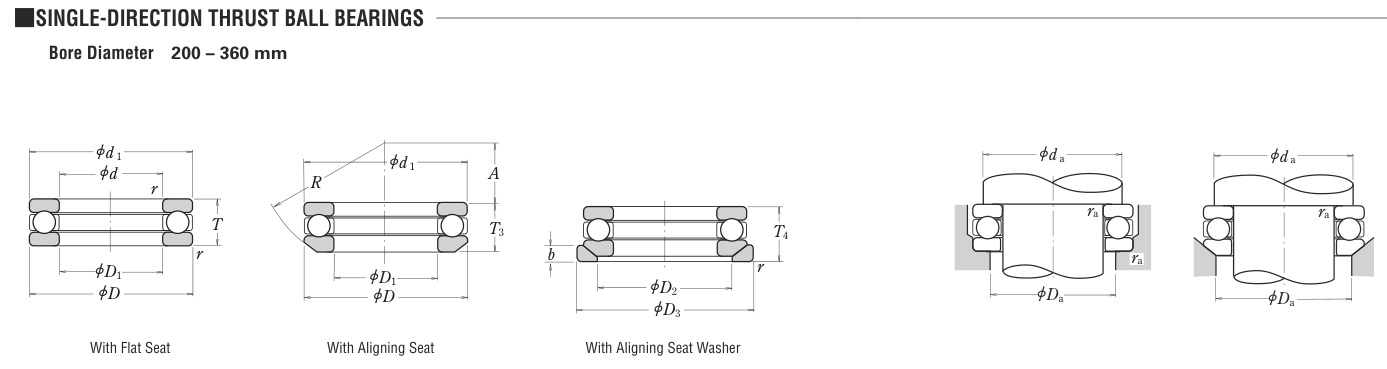

Original catalogue drawing - NSK E1103, page 318
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
| Symbol | Dimension | mm | inch |
|---|---|---|---|
| d | Bore diameter | 200 | 7.874 |
| D | Outside diameter | 250 | 9.8425 |
| T | Overall assembly width | 37 | 1.4567 |
| r | Chamfer (min) | 1.1 | 0.0433 |
Notes
Thrust bearing ratings are axial values Ca / Coa; T is the overall height. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
| Bore d (mm) | 200 |
|---|---|
| Outside dia. D (mm) | 250 |
| Overall width T (mm) | 37 |
Load ratings & speeds
| Basic dynamic axial rating Ca (lbs) | 38892 |
|---|---|
| Basic static axial rating Coa (lbs) | 151746 |
| Basic dynamic axial rating Ca (N) | 173000 |
| Basic static axial rating C0a (N) | 675000 |
| Limiting speed - grease (rpm) | 1,000 |
| Limiting speed - oil (rpm) | 1,500 |
Mounting dimensions (fillets / shoulders)
| Housing fillet r max (mm) | 1.1 |
|---|
Bearing life (ISO 281 basic rating life)
| C / P | Equivalent load P (N) | L10 (106 rev) | L10h at 300 rpm |
|---|---|---|---|
| 4 | 43,250 | 102 | 5,644 |
| 6 | 28,833 | 392 | 21,805 |
| 8 | 21,625 | 1,024 | 56,889 |
| 10 | 17,300 | 2,154 | 119,691 |
| 15 | 11,533 | 8,323 | 462,415 |
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 173,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
| Brand | NSK |
|---|---|
| Source catalogue | NSK CAT. No. E1103 (metric) |
| Catalogue page | p.318 (dimensions) |
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
Nearby bore sizes
| Designation | Brand | Type | d | D | B/T | Dyn. rating | kg |
|---|---|---|---|---|---|---|---|
| 29240 | NSK | Thrust | 200 | 280 | 48 | 121,000 lbs | 8.528 |
| 29340 | NSK | Thrust | 200 | 340 | 85 | 1570 kN | 28.5 |
| 29340E | NSK | Thrust | 200 | 340 | 85 | 355,000 lbs | 28.576 |
| 29440 | NSK | Thrust | 200 | 400 | 122 | 515,000 lbs | 68.946 |
| 51240 | NSK | Thrust | 200 | 280 | 62 | 315 kN | 13.4 |
| 52240 | NSK | Thrust | 200 | 280 | None | 315 kN | 23.2 |
