52326NSKThrust
52326 is a NSK thrust bearing, bore 130 mm, O.D. 225 mm, dynamic rating 350 kN, limiting speed 710 rpm. Dimensions, drawing, interchanges and price.

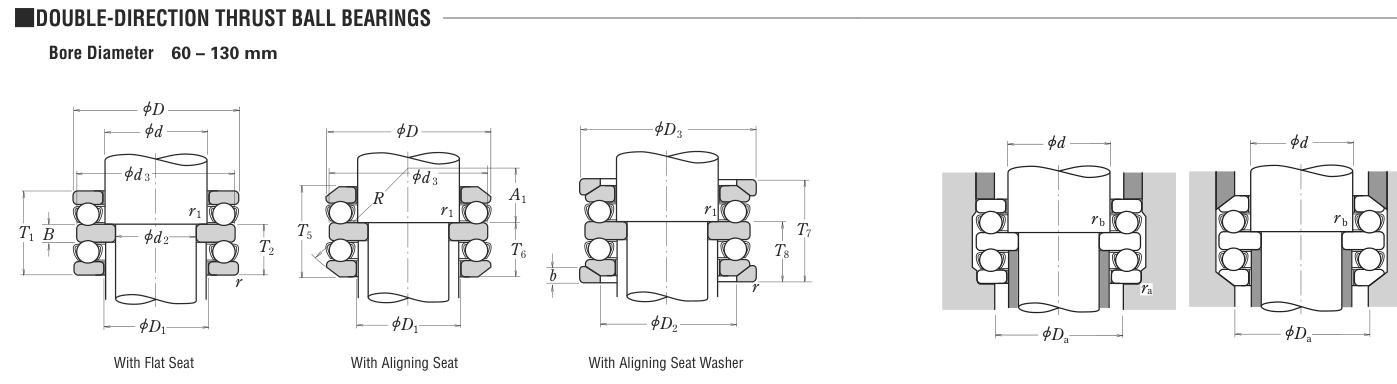

Original catalogue drawing - NSK E1103, page 320
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
| Symbol | Dimension | mm | inch |
|---|---|---|---|
| d | Bore diameter | 130 | 5.1181 |
| D | Outside diameter | 225 | 8.8583 |
| r | Chamfer (min) | 2.1 | 0.0827 |
Notes
Thrust bearing ratings are axial values Ca / Coa; T is the overall height. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
| Bore d (mm) | 130 |
|---|---|
| Outside dia. D (mm) | 225 |
Load ratings & speeds
| Basic dynamic axial rating Ca (lbs) | 78683 |
|---|---|
| Basic static axial rating Coa (lbs) | 231553 |
| Basic dynamic axial rating Ca (N) | 350000 |
| Basic static axial rating C0a (N) | 1030000 |
| Limiting speed - grease (rpm) | 710 |
| Limiting speed - oil (rpm) | 1,100 |
Mounting dimensions (fillets / shoulders)
| Housing fillet r max (mm) | 2.1 |
|---|---|
| Chamfer r1 min (mm) | 1.1 |
Bearing life (ISO 281 basic rating life)
| C / P | Equivalent load P (N) | L10 (106 rev) | L10h at 200 rpm |
|---|---|---|---|
| 4 | 87,500 | 102 | 8,466 |
| 6 | 58,333 | 392 | 32,708 |
| 8 | 43,750 | 1,024 | 85,333 |
| 10 | 35,000 | 2,154 | 179,536 |
| 15 | 23,333 | 8,323 | 693,622 |
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 350,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
| Brand | NSK |
|---|---|
| Source catalogue | NSK CAT. No. E1103 (metric) |
| Catalogue page | p.320 (dimensions) |
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
Nearby bore sizes
| Designation | Brand | Type | d | D | B/T | Dyn. rating | kg |
|---|---|---|---|---|---|---|---|
| 29326 | NSK | Thrust | 130 | 225 | 58 | 740 kN | 8.95 |
| 29326E | NSK | Thrust | 130 | 225 | 58 | 166,000 lbs | 8.936 |
| 29426 | NSK | Thrust | 130 | 270 | 85 | 1330 kN | 21.1 |
| 29426E | NSK | Thrust | 130 | 270 | 85 | 298,000 lbs | 21.092 |
| 51126 | NSK | Thrust | 130 | 170 | 30 | 23,600 lbs | 1.678 |
| 51226 | NSK | Thrust | 130 | 190 | 45 | 183 kN | 4.35 |
| 51226X | NSK | Thrust | 130 | 190 | 45 | 41,200 lbs | 3.951 |
| 51228 | NSK | Thrust | 130 | 200 | 46 | 186 kN | 4.74 |
