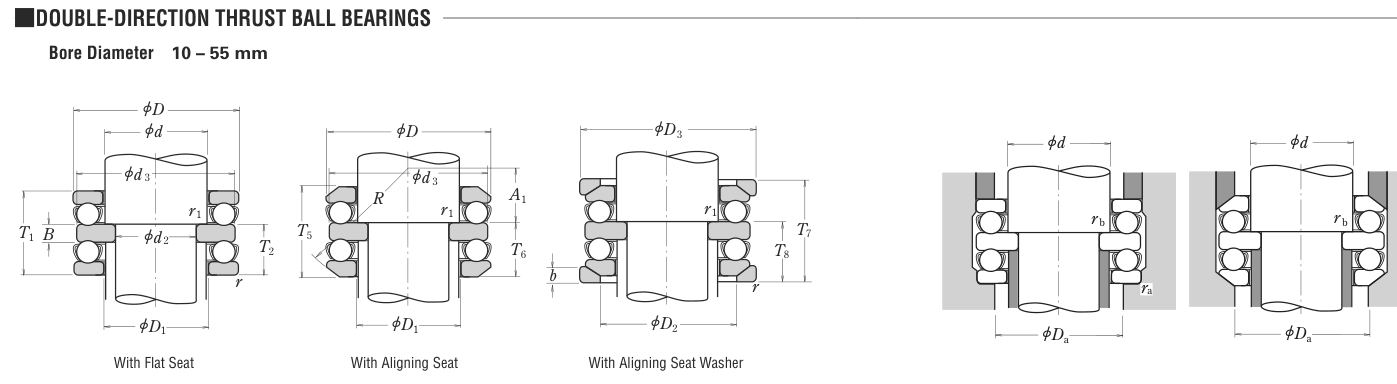

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
60
2.3622
D
Outside diameter
130
5.1181
r
Chamfer (min)
1.5
0.0591
Notes
Thrust bearing ratings are axial values Ca / Coa; T is the overall height. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
60
Outside dia. D (mm)
130
Load ratings & speeds
Basic dynamic axial rating Ca (lbs)
45411
Basic static axial rating Coa (lbs)
88800
Basic dynamic axial rating Ca (N)
202000
Basic static axial rating C0a (N)
395000
Limiting speed - grease (rpm)
1,100
Limiting speed - oil (rpm)
1,700
Weight
Weight (kg)
5.82
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
1.5
Chamfer r1 min (mm)
0.6
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 300 rpm
4
50,500
102
5,644
6
33,667
392
21,805
8
25,250
1,024
56,889
10
20,200
2,154
119,691
15
13,467
8,323
462,415
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 202,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.319 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
