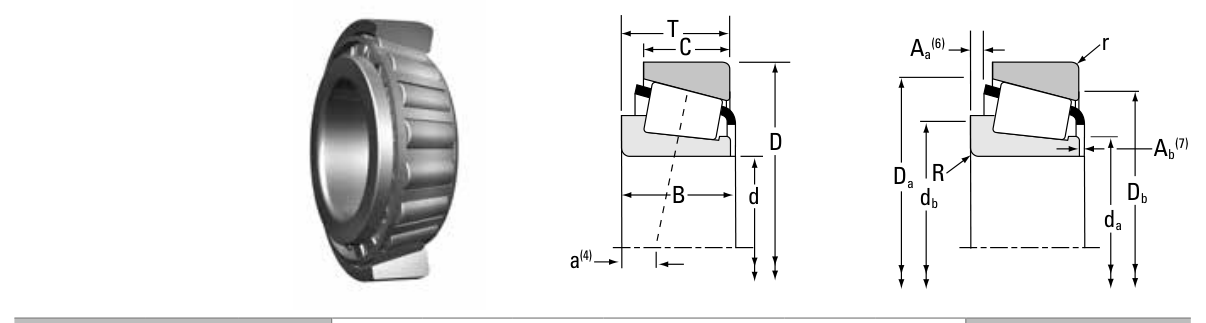

Original catalogue drawing - Timken TRB Catalog, page 416
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
90
3.5433
D
Outside diameter
160
6.2992
B
Inner-ring / bearing width
30
1.1811
T
Overall assembly width
32.5
1.2795
C
Cup / outer-ring width
26
1.0236
r
Chamfer (min)
2
0.0787
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
90.000
Bore d (in)
3.5433
Outside dia. D (mm)
160.000
Outside dia. D (in)
6.2992
Width B (mm)
30.000
Overall width T (mm)
32.500
Overall width T (in)
1.2795
Cup width C (mm)
26.000
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
54100
Basic static load rating Cor (lbs)
66200
Basic dynamic load rating Cr (N)
240000
Basic static load rating C0r (N)
295000
Dynamic rating C1 (N, ISO)
240000
Dynamic rating C1 (lbf, ISO)
54100
Radial rating C90 (N)
62300
Radial rating C90 (lbf)
14000
Thrust rating Ca90 (N)
44800
Thrust rating Ca90 (lbf)
10100
Static rating C0 (N)
295000
Static rating C0 (lbf)
66200
Factor e
0.42
Factor Y
1.43
Factor K
1.39
Geometry factor G1
125.9
Geometry factor G2
47.7
Geometry factor Cg
0.0844
Effective load centre a (mm)
-0.5
Weight
Weight (kg)
2.63
Mounting dimensions (fillets / shoulders)
Shaft fillet R max (mm)
2.5
Housing fillet r max (mm)
2.0
Shaft shoulder da (mm)
102.0
Shaft shoulder db (mm)
106.0
Housing shoulder Da (mm)
152.0
Housing shoulder Db (mm)
146.0
Cage projection Aa (mm)
3.9
Cage projection Ab (mm)
4.6
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
60,000
102
3,386
6
40,000
392
13,083
8
30,000
1,024
34,133
10
24,000
2,154
71,814
15
16,000
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 240,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.416 (dimensions)
Series type
TS
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
