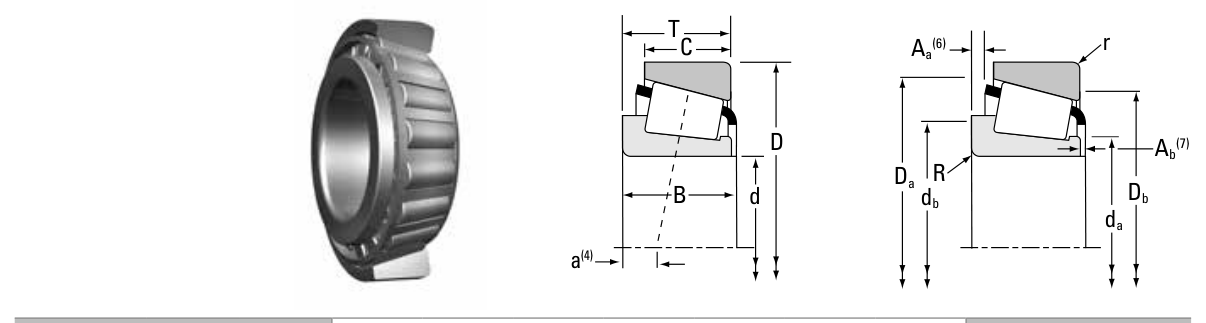

Original catalogue drawing - Timken TRB Catalog, page 428
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
200
7.874
D
Outside diameter
280
11.0236
B
Inner-ring / bearing width
51
2.0079
T
Overall assembly width
51
2.0079
C
Cup / outer-ring width
39
1.5354
r
Chamfer (min)
2.5
0.0984
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
200.000
Bore d (in)
7.8740
Outside dia. D (mm)
280.000
Outside dia. D (in)
11.0236
Width B (mm)
51.000
Overall width T (mm)
51.000
Overall width T (in)
2.0079
Cup width C (mm)
39.000
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
119000
Basic static load rating Cor (lbs)
235000
Basic dynamic load rating Cr (N)
530000
Basic static load rating C0r (N)
1050000
Dynamic rating C1 (N, ISO)
530000
Dynamic rating C1 (lbf, ISO)
119000
Radial rating C90 (N)
137000
Radial rating C90 (lbf)
30900
Thrust rating Ca90 (N)
92800
Thrust rating Ca90 (lbf)
20900
Static rating C0 (N)
1050000
Static rating C0 (lbf)
235000
Factor e
0.39
Factor Y
1.52
Factor K
1.48
Geometry factor G1
843.3
Geometry factor G2
220.2
Geometry factor Cg
0.1298
Effective load centre a (mm)
3.0
Weight
Weight (kg)
9.45
Mounting dimensions (fillets / shoulders)
Shaft fillet R max (mm)
3.0
Housing fillet r max (mm)
2.5
Shaft shoulder da (mm)
213.0
Shaft shoulder db (mm)
217.0
Housing shoulder Da (mm)
272.0
Housing shoulder Db (mm)
262.0
Cage projection Aa (mm)
4.6
Cage projection Ab (mm)
1.4
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
132,500
102
3,386
6
88,333
392
13,083
8
66,250
1,024
34,133
10
53,000
2,154
71,814
15
35,333
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 530,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.428 (dimensions)
Series type
TS
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
