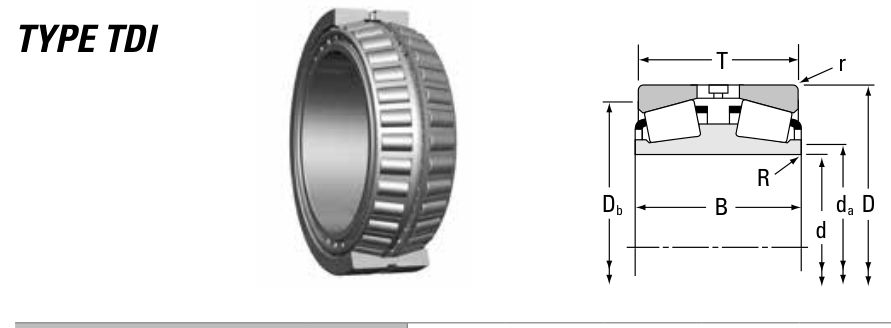

Original catalogue drawing - Timken TRB Catalog, page 614
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
114.3
4.5
D
Outside diameter
212.725
8.375
B
Inner-ring / bearing width
152.4
6
T
Overall assembly width
142.875
5.625
r
Chamfer (min)
3.3
0.1299
Notes
Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
114.300
Bore d (in)
4.5000
Outside dia. D (mm)
212.725
Outside dia. D (in)
8.3750
Width B (mm)
152.400
Width B (in)
6.0000
Overall width T (mm)
142.875
Overall width T (in)
5.6250
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
266000
Basic dynamic load rating Cr (N)
1180000
Dynamic rating C1 (N, ISO)
1180000
Dynamic rating C1 (lbf, ISO)
266000
Radial rating C90 (N)
176000
Radial rating C90 (lbf)
39600
Thrust rating Ca90 (N)
98300
Thrust rating Ca90 (lbf)
22100
Factor e
0.3
Factor Y1
2.1
Factor Y2
3.1
Factor K
1.79
Geometry factor G1
366.6
Geometry factor G2
47.9
Geometry factor Cg
0.1182
Weight
Weight (kg)
22.01
Mounting dimensions (fillets / shoulders)
Shaft fillet R max (mm)
3.3
Housing fillet r max (mm)
3.3
Shaft shoulder da (mm)
133.2
Housing shoulder Db (mm)
192.0
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
295,000
102
3,386
6
196,667
392
13,083
8
147,500
1,024
34,133
10
118,000
2,154
71,814
15
78,667
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 1,180,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.614 (dimensions)
Series type
TDI
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
