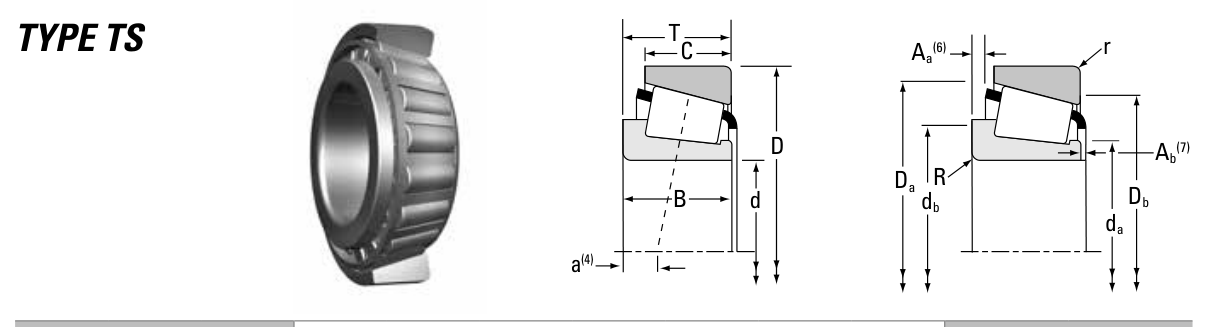

Original catalogue drawing - Timken TRB Catalog, page 364
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
300.038
11.8125
D
Outside diameter
422.275
16.625
B
Inner-ring / bearing width
82.55
3.25
T
Overall assembly width
82.55
3.25
C
Cup / outer-ring width
63.5
2.5
r
Chamfer (min)
3.3
0.1299
Notes
Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
300.038
Bore d (in)
11.8125
Outside dia. D (mm)
422.275
Outside dia. D (in)
16.6250
Width B (mm)
82.550
Overall width T (mm)
82.550
Overall width T (in)
3.2500
Cup width C (mm)
63.500
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
292000
Basic static load rating Cor (lbs)
622000
Basic dynamic load rating Cr (N)
1300000
Basic static load rating C0r (N)
2770000
Dynamic rating C1 (N, ISO)
1300000
Dynamic rating C1 (lbf, ISO)
292000
Radial rating C90 (N)
336000
Radial rating C90 (lbf)
75600
Thrust rating Ca90 (N)
194000
Thrust rating Ca90 (lbf)
43600
Static rating C0 (N)
2770000
Static rating C0 (lbf)
622000
Factor e
0.34
Factor Y
1.78
Factor K
1.73
Geometry factor G1
2548.4
Geometry factor G2
281.8
Geometry factor Cg
0.1779
Effective load centre a (mm)
-5.6
Weight
Weight (kg)
35.46
Cup weight (kg)
10.53
Mounting dimensions (fillets / shoulders)
Shaft fillet R max (mm)
6.4
Housing fillet r max (mm)
3.3
Shaft shoulder da (mm)
319.0
Shaft shoulder db (mm)
328.0
Housing shoulder Da (mm)
403.0
Housing shoulder Db (mm)
394.0
Cage projection Aa (mm)
7.4
Cage projection Ab (mm)
3.6
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
325,000
102
3,386
6
216,667
392
13,083
8
162,500
1,024
34,133
10
130,000
2,154
71,814
15
86,667
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 1,300,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.364 (dimensions) / p.155 (cone) / p.154 (cup)
Series type
TS
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
