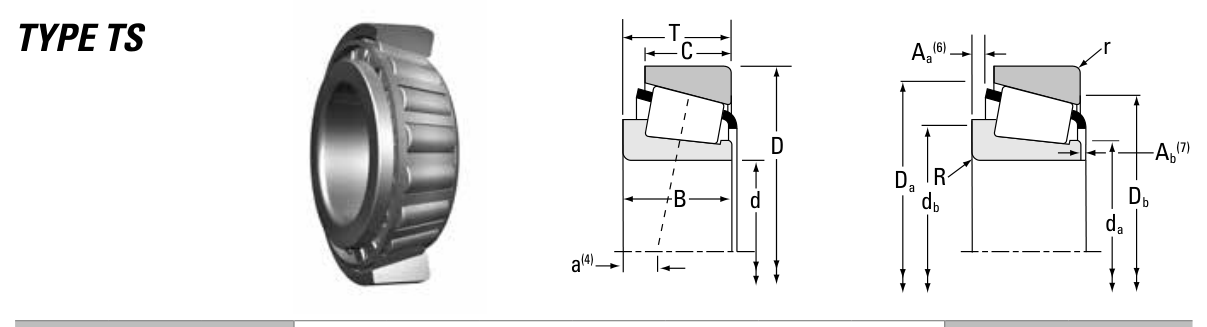

Original catalogue drawing - Timken TRB Catalog, page 84
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
15.875
0.625
D
Outside diameter
34.988
1.3775
B
Inner-ring / bearing width
10.998
0.433
T
Overall assembly width
10.998
0.433
C
Cup / outer-ring width
8.712
0.343
r
Chamfer (min)
1.3
0.0512
Notes
Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
15.875
Bore d (in)
0.6250
Outside dia. D (mm)
34.988
Outside dia. D (in)
1.3775
Width B (mm)
10.998
Overall width T (mm)
10.998
Overall width T (in)
0.4330
Cup width C (mm)
8.712
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
3230
Basic static load rating Cor (lbs)
3130
Basic dynamic load rating Cr (N)
14300
Basic static load rating C0r (N)
13900
Dynamic rating C1 (N, ISO)
14300
Dynamic rating C1 (lbf, ISO)
3230
Radial rating C90 (N)
3720
Radial rating C90 (lbf)
836
Thrust rating Ca90 (N)
2030
Thrust rating Ca90 (lbf)
456
Static rating C0 (N)
13900
Static rating C0 (lbf)
3130
Factor e
0.32
Factor Y
1.88
Factor K
1.83
Geometry factor G1
3.0
Geometry factor G2
5.4
Geometry factor Cg
0.0348
Effective load centre a (mm)
-3.3
Weight
Weight (kg)
0.06
Cone weight (kg)
0.03
Cup weight (kg)
0.02
Total weight (kg)
0.05
Mounting dimensions (fillets / shoulders)
Shaft fillet R max (mm)
1.3
Housing fillet r max (mm)
1.3
Shaft shoulder da (mm)
19.5
Shaft shoulder db (mm)
21.5
Housing shoulder Da (mm)
32.5
Housing shoulder Db (mm)
29.0
Cage projection Aa (mm)
-0.3
Cage projection Ab (mm)
1.4
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
3,575
102
3,386
6
2,383
392
13,083
8
1,788
1,024
34,133
10
1,430
2,154
71,814
15
953
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 14,300 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.84 (dimensions) / p.77 (cone) / p.77 (cup)
Series type
TS
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
