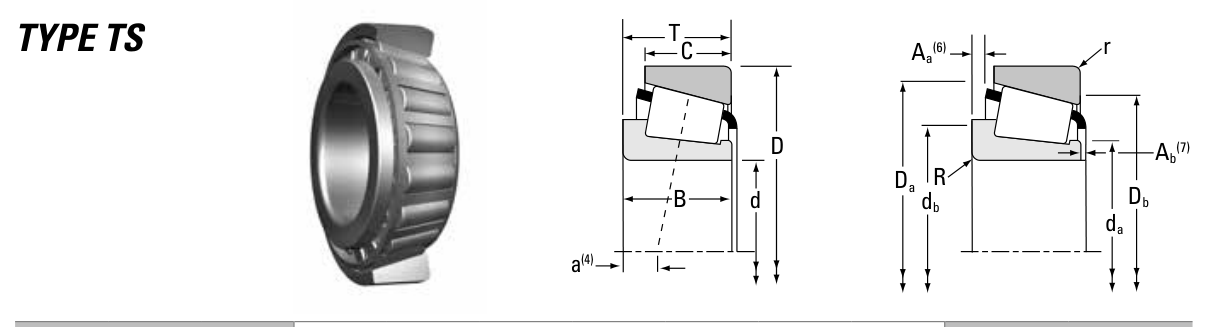

Original catalogue drawing - Timken TRB Catalog, page 86
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
19.05
0.75
D
Outside diameter
45.237
1.781
B
Inner-ring / bearing width
16.637
0.655
T
Overall assembly width
15.494
0.61
C
Cup / outer-ring width
12.065
0.475
r
Chamfer (min)
1.3
0.0512
Notes
Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
19.050
Bore d (in)
0.7500
Outside dia. D (mm)
45.237
Outside dia. D (in)
1.7810
Width B (mm)
16.637
Overall width T (mm)
15.494
Overall width T (in)
0.6100
Cup width C (mm)
12.065
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
8800
Basic static load rating Cor (lbs)
7200
Basic dynamic load rating Cr (N)
39100
Basic static load rating C0r (N)
32000
Dynamic rating C1 (N, ISO)
39100
Dynamic rating C1 (lbf, ISO)
8800
Radial rating C90 (N)
10100
Radial rating C90 (lbf)
2280
Thrust rating Ca90 (N)
5220
Thrust rating Ca90 (lbf)
1170
Static rating C0 (N)
32000
Static rating C0 (lbf)
7200
Factor e
0.30
Factor Y
2.00
Factor K
1.94
Geometry factor G1
6.6
Geometry factor G2
5.5
Geometry factor Cg
0.0441
Effective load centre a (mm)
-5.6
Weight
Weight (kg)
0.12
Cup weight (kg)
0.04
Mounting dimensions (fillets / shoulders)
Shaft fillet R max (mm)
1.3
Housing fillet r max (mm)
1.3
Shaft shoulder da (mm)
23.5
Shaft shoulder db (mm)
25.0
Housing shoulder Da (mm)
41.5
Housing shoulder Db (mm)
39.5
Cage projection Aa (mm)
0.2
Cage projection Ab (mm)
0.8
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
9,775
102
3,386
6
6,517
392
13,083
8
4,888
1,024
34,133
10
3,910
2,154
71,814
15
2,607
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 39,100 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.86 (dimensions) / p.68 (cone) / p.68 (cup)
Series type
TS
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
