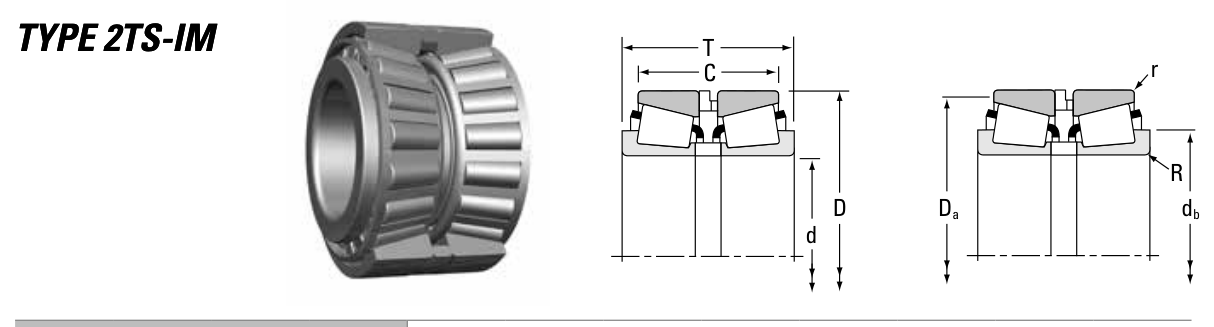

Original catalogue drawing - Timken TRB Catalog, page 698
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
488.95
19.25
D
Outside diameter
634.873
24.995
T
Overall assembly width
227.99
8.976
C
Cup / outer-ring width
183.54
7.226
Notes
Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
488.950
Bore d (in)
19.2500
Outside dia. D (mm)
634.873
Outside dia. D (in)
24.9950
Overall width T (mm)
227.990
Overall width T (in)
8.9760
Cup width C (mm)
183.540
Cup width C (in)
7.2260
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
728000
Basic dynamic load rating Cr (N)
3240000
Dynamic rating C1 (N, ISO)
3240000
Dynamic rating C1 (lbf, ISO)
728000
Radial rating C90 (N)
482000
Radial rating C90 (lbf)
108000
Thrust rating Ca90 (N)
390000
Thrust rating Ca90 (lbf)
87800
Factor e
0.47
Factor Y1
1.43
Factor Y2
2.12
Factor K
1.24
Weight
Weight (kg)
137.63
Cone weight (kg)
44.45
Cup weight (kg)
19.19
Total weight (kg)
63.64
Mounting dimensions (fillets / shoulders)
Shaft shoulder db (mm)
522.0
Housing shoulder Da (mm)
613.3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
810,000
102
3,386
6
540,000
392
13,083
8
405,000
1,024
34,133
10
324,000
2,154
71,814
15
216,000
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 3,240,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.698 (dimensions) / p.211 (cone) / p.211 (cup)
Series type
TS
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
