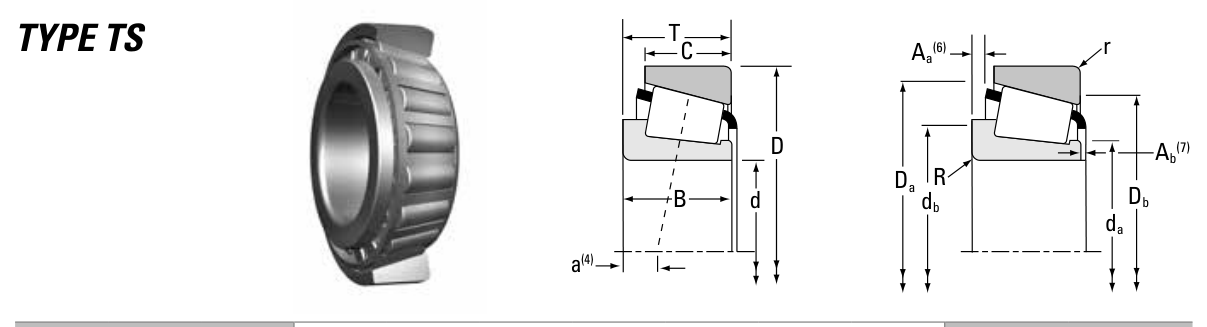

Original catalogue drawing - Timken TRB Catalog, page 90
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
22.225
0.875
D
Outside diameter
50.005
1.9687
B
Inner-ring / bearing width
18.288
0.72
T
Overall assembly width
17.526
0.69
C
Cup / outer-ring width
13.97
0.55
r
Chamfer (min)
1.3
0.0512
Notes
Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
22.225
Bore d (in)
0.8750
Outside dia. D (mm)
50.005
Outside dia. D (in)
1.9687
Width B (mm)
18.288
Overall width T (mm)
17.526
Overall width T (in)
0.6900
Cup width C (mm)
13.970
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
11700
Basic static load rating Cor (lbs)
9780
Basic dynamic load rating Cr (N)
52200
Basic static load rating C0r (N)
43500
Dynamic rating C1 (N, ISO)
52200
Dynamic rating C1 (lbf, ISO)
11700
Radial rating C90 (N)
13500
Radial rating C90 (lbf)
3040
Thrust rating Ca90 (N)
6440
Thrust rating Ca90 (lbf)
1450
Static rating C0 (N)
43500
Static rating C0 (lbf)
9780
Factor e
0.28
Factor Y
2.16
Factor K
2.10
Geometry factor G1
9.1
Geometry factor G2
5.6
Geometry factor Cg
0.0479
Effective load centre a (mm)
-6.4
Weight
Weight (kg)
0.16
Mounting dimensions (fillets / shoulders)
Shaft fillet R max (mm)
0.4
Housing fillet r max (mm)
1.3
Shaft shoulder da (mm)
26.5
Shaft shoulder db (mm)
26.5
Housing shoulder Da (mm)
46.0
Housing shoulder Db (mm)
44.0
Cage projection Aa (mm)
0.3
Cage projection Ab (mm)
1.2
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
13,050
102
3,386
6
8,700
392
13,083
8
6,525
1,024
34,133
10
5,220
2,154
71,814
15
3,480
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 52,200 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.90 (dimensions)
Series type
TS
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
