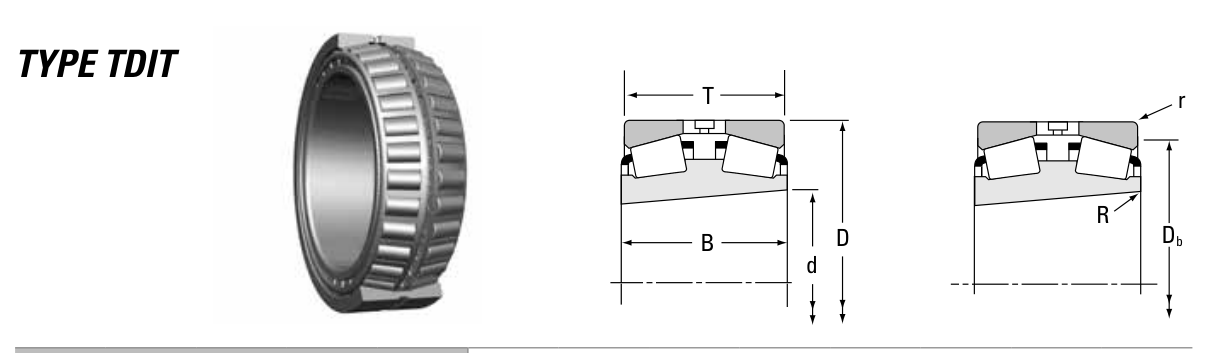

Original catalogue drawing - Timken TRB Catalog, page 646
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
571.5
22.5
D
Outside diameter
812.8
32
B
Inner-ring / bearing width
296.862
11.6875
T
Overall assembly width
285.75
11.25
r
Chamfer (min)
6.4
0.252
Notes
Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
571.500
Bore d (in)
22.5000
Outside dia. D (mm)
812.800
Outside dia. D (in)
32.0000
Width B (mm)
296.862
Width B (in)
11.6875
Overall width T (mm)
285.750
Overall width T (in)
11.2500
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
1770000
Basic dynamic load rating Cr (N)
7890000
Dynamic rating C1 (N, ISO)
7890000
Dynamic rating C1 (lbf, ISO)
1770000
Radial rating C90 (N)
1180000
Radial rating C90 (lbf)
264000
Thrust rating Ca90 (N)
669000
Thrust rating Ca90 (lbf)
150000
Factor e
0.33
Factor Y1
2.03
Factor Y2
3.02
Factor K
1.76
Geometry factor G1
12425.1
Geometry factor G2
669.4
Geometry factor Cg
0.2990
Weight
Weight (kg)
520.85
Mounting dimensions (fillets / shoulders)
Shaft fillet R max (mm)
3.3
Housing fillet r max (mm)
6.4
Housing shoulder Db (mm)
756.0
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
1,972,500
102
3,386
6
1,315,000
392
13,083
8
986,250
1,024
34,133
10
789,000
2,154
71,814
15
526,000
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 7,890,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.646 (dimensions)
Series type
TDIT
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
