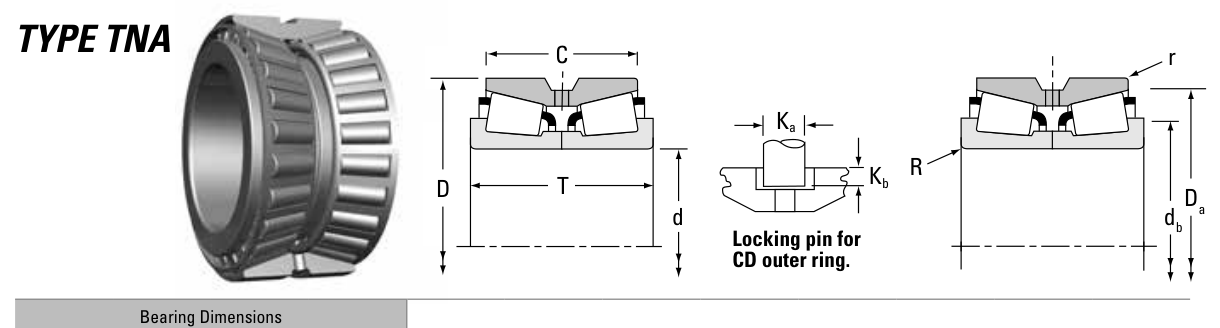

Original catalogue drawing - Timken TRB Catalog, page 654
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
76.2
3
D
Outside diameter
136.525
5.375
T
Overall assembly width
69.85
2.75
C
Cup / outer-ring width
53.975
2.125
r
Chamfer (min)
0.8
0.0315
Notes
Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
76.200
Bore d (in)
3.0000
Outside dia. D (mm)
136.525
Outside dia. D (in)
5.3750
Overall width T (mm)
69.850
Overall width T (in)
2.7500
Cup width C (mm)
53.975
Cup width C (in)
2.1250
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
60500
Basic dynamic load rating Cr (N)
269000
Dynamic rating C1 (N, ISO)
269000
Dynamic rating C1 (lbf, ISO)
60500
Radial rating C90 (N)
40000
Radial rating C90 (lbf)
9000
Thrust rating Ca90 (N)
30500
Thrust rating Ca90 (lbf)
6850
Factor e
0.44
Factor Y1
1.52
Factor Y2
2.26
Factor K
1.31
Weight
Weight (kg)
4.14
Mounting dimensions (fillets / shoulders)
Shaft fillet R max (mm)
3.5
Housing fillet r max (mm)
0.8
Shaft shoulder db (mm)
92.0
Housing shoulder Da (mm)
130.0
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
67,250
102
3,386
6
44,833
392
13,083
8
33,625
1,024
34,133
10
26,900
2,154
71,814
15
17,933
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 269,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.654 (dimensions)
Series type
TNA
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
