X32006X/Y32006XTimkenTapered Roller

Name: Timken X32006X/Y32006X Tapered Roller Bearing
Brand: Timken
SKU: X32006X/Y32006X

X32006X/Y32006X is a Timken tapered roller bearing, bore 30 mm, O.D. 55 mm, width 34 mm. Dimensions, drawing, interchanges and price.

Cone + cup assembly

Request a quote WhatsApp Email us Search the catalog

Bore d30mm

Outside dia. D55mm

Width B34mm

Dynamic Cr80.9kN

Weight0.37kg

Mean dia. dm42.5mm

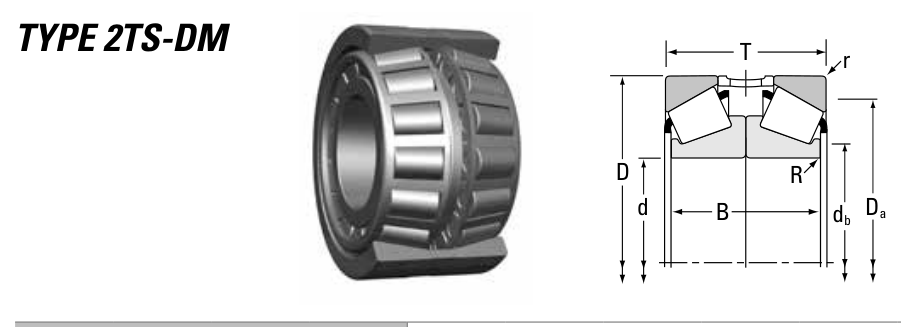

Original catalogue drawing - Timken TRB Catalog, page 700

X32006X/Y32006X Timken Tapered Roller bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	30	1.1811
D	Outside diameter	55	2.1654
B	Inner-ring / bearing width	34	1.3386
T	Overall assembly width	34	1.3386

Notes

Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	30.000
Bore d (in)	1.1811
Outside dia. D (mm)	55.000
Outside dia. D (in)	2.1654
Width B (mm)	34.000
Width B (in)	1.3386
Overall width T (mm)	34.000
Overall width T (in)	1.3386

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	18200
Basic dynamic load rating Cr (N)	80900
Dynamic rating C1 (N, ISO)	80900
Dynamic rating C1 (lbf, ISO)	18200
Radial rating C90 (N)	12000
Radial rating C90 (lbf)	2710
Thrust rating Ca90 (N)	8870
Thrust rating Ca90 (lbf)	1990
Factor e	0.43
Factor Y1	1.57
Factor Y2	2.34
Factor K	1.36

Weight

Weight (kg)	0.37

Mounting dimensions (fillets / shoulders)

Shaft shoulder db (mm)	36.0
Housing shoulder Da (mm)	49.0

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 500 rpm
4	20,225	102	3,386
6	13,483	392	13,083
8	10,112	1,024	34,133
10	8,090	2,154	71,814
15	5,393	8,323	277,449

Basic rating life per ISO 281: L₁₀ = (C/P)^10/3 with C = 80,900 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	Timken
Source catalogue	Timken Tapered Roller Bearing Catalog (2016)
Catalogue page	p.700 (dimensions)
Series type	TS

ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.

Interchange - same dimensions, other brands

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
SL045006-D-PP	FAG	Cylindrical Roller	30	55	34	50 kN	2.1
SL045006-PP	FAG	Cylindrical Roller	30	55	34	50 kN	0.37
SL185006	FAG	Cylindrical Roller	30	55	34	78 kN	0.35
SL185006-XL	FAG	Cylindrical Roller	30	55	34	78 kN	0.35

Series variants (different suffix)

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
X32006X/YGA32006X	Timken	Tapered Roller	30	62	17	-	-

Nearby bore sizes

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
14117A/14272	Timken	Tapered Roller	30	69.01	19.58	-	0.34
14117A/14274A	Timken	Tapered Roller	30	68.96	19.58	54.6 kN	0.34
14117A/14276	Timken	Tapered Roller	30	69.01	19.58	54.6 kN	0.35
14117A/14276D	Timken	Tapered Roller	30	69.01	46.04	95.1 kN	0.78
14117A/14283	Timken	Tapered Roller	30	72.08	19.58	54.6 kN	0.43
14118/14274	Timken	Tapered Roller	30	69.01	19.2	54.6 kN	0.35
14118/14276D	Timken	Tapered Roller	30	69.01	46.04	95.1 kN	0.78
14118/14283	Timken	Tapered Roller	30	72.08	19.2	54.6 kN	0.43
