C-8091-CTimkenThrust
C-8091-C is a Timken thrust bearing, bore 279.4 mm, O.D. 603.25 mm, height 136.14 mm, weight 231 kg. Dimensions, drawing, interchanges and price.

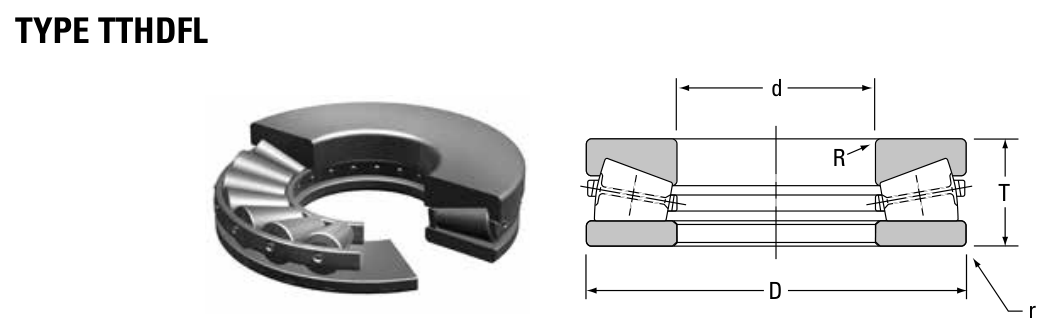

Original catalogue drawing - Timken TRB Catalog, page 740
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
| Symbol | Dimension | mm | inch |
|---|---|---|---|
| d | Bore diameter | 279.4 | 11 |
| D | Outside diameter | 603.25 | 23.75 |
| T | Overall assembly width | 136.14 | 5.3598 |
Notes
Thrust bearing ratings are axial values Ca / Coa; T is the overall height. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
| Bore d (mm) | 279.400 |
|---|---|
| Outside dia. D (mm) | 603.250 |
| Overall width T (mm) | 136.140 |
Load ratings & speeds
| Basic static load rating C0r (N) | 1770000 |
|---|---|
| Thrust rating Ca90 (N) | 2050000 |
| Static rating C0 (N) | 1770000 |
Weight
| Weight (kg) | 231.0 |
|---|
Source & traceability
| Brand | Timken |
|---|---|
| Source catalogue | Timken Tapered Roller Bearing Catalog (2016) |
| Catalogue page | p.740 (dimensions) |
| Series type | TTHD |
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
Request a quotation for C-8091-C
Send us the quantity you need and we will come back with price and lead time, normally within 24 hours. Equivalent parts from other brands can be quoted at the same time.
