T135TimkenThrust
T135 is a Timken thrust bearing, bore 34.92 mm, O.D. 76.2 mm, height 15.88 mm, weight 0.37 kg. Dimensions, drawing, interchanges and price.

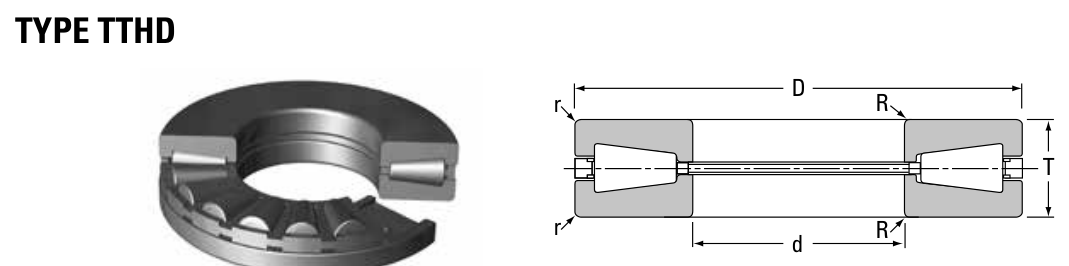

Original catalogue drawing - Timken TRB Catalog, page 739
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
| Symbol | Dimension | mm | inch |
|---|---|---|---|
| d | Bore diameter | 34.925 | 1.375 |
| D | Outside diameter | 76.2 | 3 |
| T | Overall assembly width | 15.875 | 0.625 |
Notes
Thrust bearing ratings are axial values Ca / Coa; T is the overall height. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
| Bore d (mm) | 34.925 |
|---|---|
| Outside dia. D (mm) | 76.200 |
| Overall width T (mm) | 15.875 |
Load ratings & speeds
| Basic static load rating C0r (N) | 317000 |
|---|---|
| Thrust rating Ca90 (N) | 31700 |
| Static rating C0 (N) | 317000 |
Weight
| Weight (kg) | 0.37 |
|---|
Source & traceability
| Brand | Timken |
|---|---|
| Source catalogue | Timken Tapered Roller Bearing Catalog (2016) |
| Catalogue page | p.739 (dimensions) |
| Series type | TTHD |
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
