6320FAGBall

Name: FAG 6320 Ball Bearing
Brand: FAG
SKU: 6320

6320 is a FAG ball bearing, bore 100 mm, O.D. 215 mm, width 47 mm, dynamic rating 177 kN. Dimensions, drawing, interchanges and price.

Request a quote WhatsApp Email us Search the catalog

Bore d100mm

Outside dia. D215mm

Width B47mm

Dynamic Cr177kN

Static C0r137kN

Limiting speed4,250rpm

Weight7.67kg

Cr / C0r1.29

Mean dia. dm157.5mm

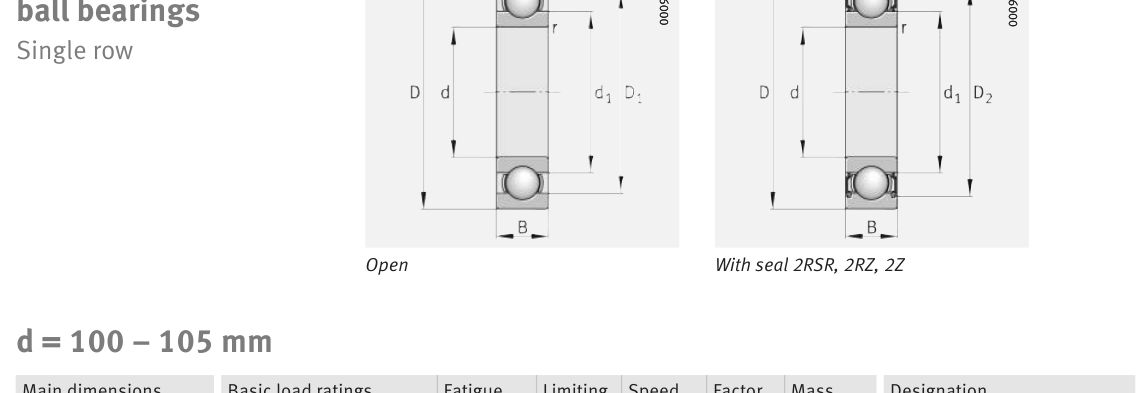

Original catalogue drawing - FAG Schaeffler HR 1, page 268

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	100	3.937
D	Outside diameter	215	8.4646
B	Inner-ring / bearing width	47	1.8504
r	Chamfer (min)	3	0.1181

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	100
Outside dia. D (mm)	215
Width B (mm)	47
Inner-ring OD d1 (mm)	138.6
Inner-ring shoulder dia. D1 (mm)	179

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	39791
Basic static load rating Cor (lbs)	30799
Basic dynamic load rating Cr (N)	177000
Basic static load rating C0r (N)	137000
Fatigue limit load Cur (N)	7100
Factor f0	13.7
Limiting speed nG (rpm)	4,250
Reference speed nB (rpm)	4,600

Weight

Weight (kg)	7.67

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	3
Shaft shoulder da (mm)	114
Housing shoulder Da (mm)	201
Housing fillet ra max (mm)	2.5

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 1,400 rpm
4	44,250	64	762
6	29,500	216	2,571
8	22,125	512	6,095
10	17,700	1,000	11,905
15	11,800	3,375	40,179

Basic rating life per ISO 281: L₁₀ = (C/P)³ with C = 177,000 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.268 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
