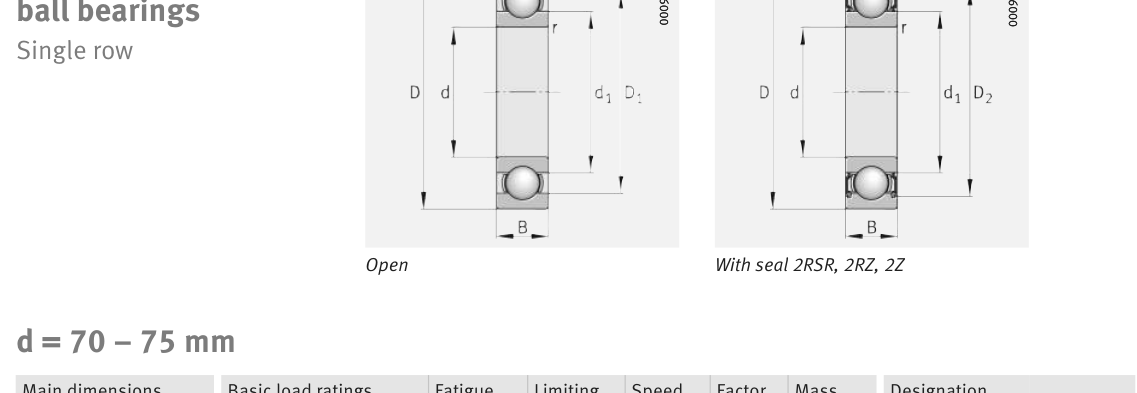

Original catalogue drawing - FAG Schaeffler HR 1, page 262
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
70
2.7559
D
Outside diameter
180
7.0866
B
Inner-ring / bearing width
42
1.6535
r
Chamfer (min)
3
0.1181
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
70
Outside dia. D (mm)
180
Width B (mm)
42
Inner-ring OD d1 (mm)
114.4
Inner-ring shoulder dia. D1 (mm)
151.6
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
31698
Basic static load rating Cor (lbs)
21806
Basic dynamic load rating Cr (N)
141000
Basic static load rating C0r (N)
97000
Fatigue limit load Cur (N)
5800
Factor f0
13.3
Limiting speed nG (rpm)
5,000
Reference speed nB (rpm)
5,200
Weight
Weight (kg)
5.06
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
3
Shaft shoulder da (mm)
86
Housing shoulder Da (mm)
164
Housing fillet ra max (mm)
2.5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,600 rpm
4
35,250
64
667
6
23,500
216
2,250
8
17,625
512
5,333
10
14,100
1,000
10,417
15
9,400
3,375
35,156
Basic rating life per ISO 281: L10 = (C/P)3 with C = 141,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.262 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
